Keri i2 Series Appliance

Keri's mini-appliances greatly simplifies installation because Keri’s Doors.NET software is pre-loaded and pre-licensed, ready to manage an access control system immediately.

1. Pre-installed software - turn it on and discover your controllers then start programming immediately.

2. Pre-loaded with Doors.NET Basic, Corporate or Elite edition - depending on the model purchased.

3. Eliminates errors and variability found in customer-provided or off-the-shelf PCs.

4. Pre-licensed for Basic, Corporate or Elite edition.

5. Small-discreet form-factor.

6. Easy configuration

i² Basic – Our basic model is pre-loaded with Doors.NET Basic Edition Software and comes ready to handle up to 40 readers and 3,000 credentials.

i² Corporate – Our “Corporate” model is the next step up, pre-loaded with Doors.NET Corporate Edition and handling up to 128 readers and 48,000 credentials. This unit has enough computing power, memory, and storage to run Keri’s entire suite of optional features.

i² Elite – Our top of the line “Elite” model packs a punch with an even faster processor and more memory, capable of handling even larger, feature-rich projects. This appliance is pre-loaded with Doors.NET Elite Edition and is capable of managing systems of 256+ readers and up to 100,000 credentials.

The i² Series Appliances also come pre-loaded with:

– Doors.NET Application Server

– Microsoft® SQL Express® Database

Selectable gateways allow the appliances to connect to any supported controller type:

1. Mercury® Powered NXT

2. Standard NXT

3. PXL-500

4. Entraguard

5. Authenticate Mercury Panels (available only on our Corporate and Elite models)

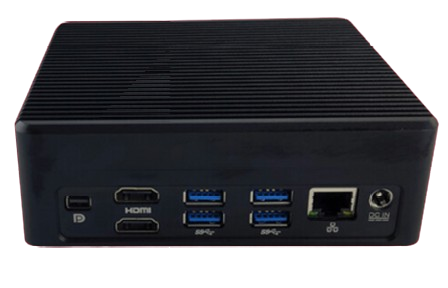

The i2 Box Appliance is configured with Doors.NET Appliance Edition Application Server, Microsoft SQL Express® database and selectable PXL-500, PXL-500/Entraguard or Standard NXT Gateways.

Simply choose your hardware type and start configuring the system. The unit comes with rubber feet for horizontal placement and a pedestal base for vertical placement.

• Ultra compact size, pre-loaded with Doors.NET Appliance Edition Access Control Software

• No waiting for software to install, or dealing with initial Windows® updates and other system issues

• Saves installer time, money, and hassle

• Suitable for installations up to 40 readers and 3000 cardholders

• Eliminates errors and variability found in customer-provided or off -the-shelf PCs

• Turn it on, select your hardware type, then start programming immediately

• Small, quiet, IT-friendly/ready package with Intel® Celeron® N5105 processor

• 8GB RAM and 500GB SSD drive


• Comes with keyboard, mouse and pedestal base

Doors.NET Basic Edition Software

• 40 Reader, 384/320 Inputs/Outputs
• 3000 Cardholders
• 1 Client, 1 hardware gateway
• Additional Clients, Report Client, and additional Gateways optional
• Any other options or upgrades require Doors.NET Corporate or Elite Edition, and are not compatible with the i2 Box

• Compatible with Keri controller types (NXT, NXT-MSC, PXL and Entraguard)

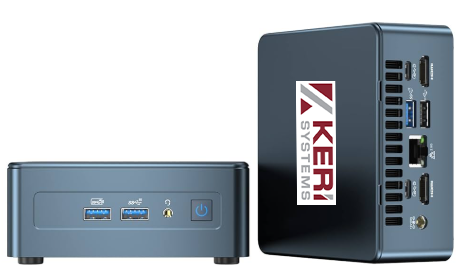

i2 Corporate Appliance PC

This unit, with 16GB RAM and 512GB SSD storage, has twice the memory of our i2 Basic. Installers will appreciate the time and hassle it saves, because it virtually eliminates Windows® problems and other system issues commonly found when using a PC provided by the customer, or purchased from a retailer.

The i2 Corporate appliance is configured with Doors.NET Corporate Edition Application Server, Microsoft SQL Express® database, and selectable PXL-500, PXL-500/Entraguard, NXT, and Mercury Powered NXT Gateways that allow it to connect to any Keri controller type.

Simply choose your hardware type and start configuring the system. The unit comes with rubber feet for horizontal placement, and a pedestal base for vertical placement.

The i2 Corporate Appliance features:

• Ultra compact size, pre-loaded with Doors.NET Standard Edition Access Control Software.

• 16GB RAM and 512GB SSD storage - Enough computing power, memory and storage to run Keri’s entire suite of optional features.
• Faster processor (Intel® Core® i5-1135 G7) and more memory, pre-configured to handle larger, feature-rich projects (in comparison to our standard i2 appliance).

• 8K Graphics.

• No waiting for software to install, or dealing with initial Windows® updates and other system issues.

• Saves installer time, money, and hassle.

• Suitable for installations up to 128 readers and 48,000 cardholders.

• Eliminates errors and variability found in customer-provided or off-the-shelf PCs.

• Turn it on, select your hardware type, then start programming immediately.

• Small, quiet, IT-friendly/ready package with 7th generation Intel processor.

• Comes with keyboard, mouse, and a pedestal base for vertical placement.

1. Up to 128 readers, 48,000 cardholders, 1024 inputs/outputs

2. 48,000 credentials

3. 2 x clients and 2 x hardware gateways

4. Additional Features Include: System Calendar, Elevator Control, Credential Types (format builder) and Local Linkages.
5. Capable of system growth and expansion, with the additions of: Badging, Rollcall, Global Linkages, Reporting Client, and increased Admin Client count.

6. Compatible with NXT, NXT-MSC, PXL, Entraguard and Authentic Mercury controller types.

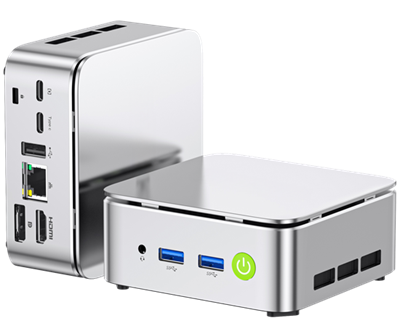

i2 Elite Appliance PC - Deluxe Version

The i2 Elite pre-loaded mini appliance greatly simplifies installation because Keri’s Doors.NET Elite Edition Software is pre-loaded and pre-licensed, ready to use immediately.

This is an embedded mini appliance with keyboard and mouse and has the capability to manage an access control system of up to more than 256 readers and 100,000 credentials.

Installers will appreciate the time and hassle it saves, because it virtually eliminates Windows® problems and other system issues commonly found when using a PC provided by the customer, or purchased from a retailer.

Simply choose your hardware type and start configuring the system.

The i2 Elite Appliance (in addition to Keri’s Doors.NET Elite Edition Software) comes pre-loaded with:

• Doors.NET Application Server
• Microsoft *SQL Express® Database

Three Selectable gateways allow the appliance to connect to any Keri controller type:

• NXT
• Mercury® Powered NXT
• PXL-500
• Entraguard

The i2 Elite Pre-loaded Appliance features:

• Ultra-compact size, pre-loaded with Doors.NET Elite Edition Access Control Software.

• 16GB DDR4 RAM and 500GB SATA-6Gb/s SSD storage - Enough computing power, memory and storage to run Keri’s entire suite of optional features.
• Intel® Core® i5-1135G7  2.40/4.20 GHz, 4 Core, 8 Threads 12/28W - configured to handle larger, feature-rich projects (in comparison to our standard i2 appliance).

• 8K Graphics.

• 2 HDMI + MiniDP + 6 x USB ports + ThunderBolt 4.0 USB-C port.

• No waiting for software to install or dealing with Windows® updates and other system issues.

• Saves the installer time, money, and hassle.

• Suitable for installations of 256 readers, and up to 100,000 credentials.

• Eliminates errors and variability found in customer-provided or off-the-shelf PCs.

• Turn it on and discover your controllers, then start programming immediately.

• Small, quiet, IT-friendly/ready package with 7th generation Intel processor.

• Comes with keyboard, mouse, and a pedestal base for vertical mounting.

• Comes with Keri’s software support and maintenance, included at no charge for the first two years.
