Aurora OSDP Reader Wiring

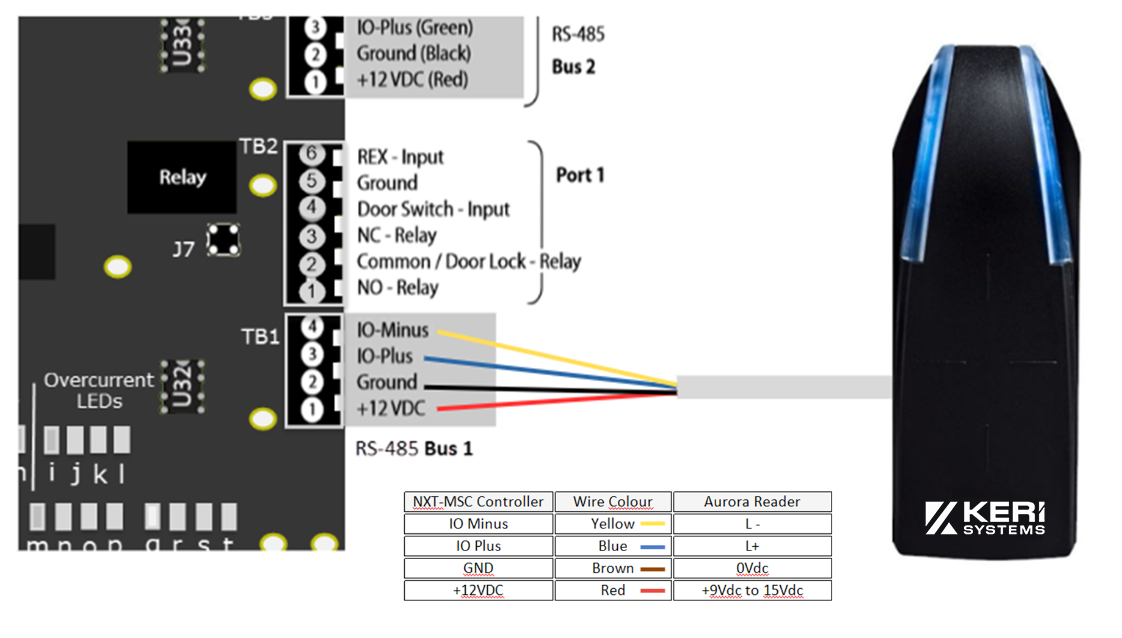

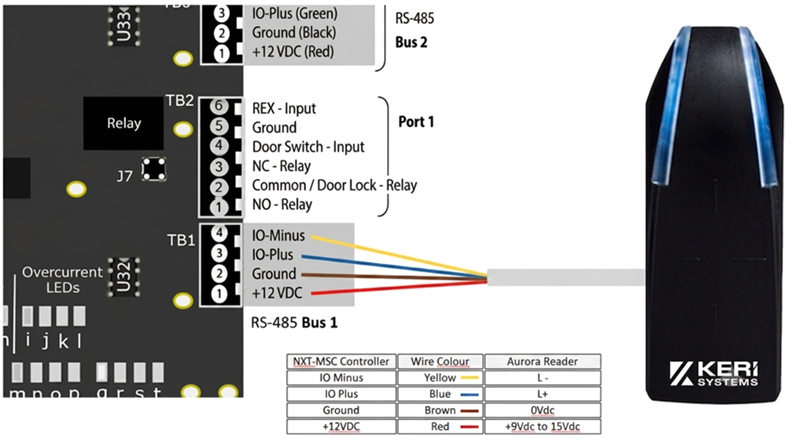

Aurora OSDP Reader Wiring Diagram

Note: The reader displayed in the following diagram is the Aurora Arc mullion reader but the same OSDP wiring applies to all Aurora readers,

​
