Connecting a Fail-Safe Lock

Connecting a Fail-Safe Lock

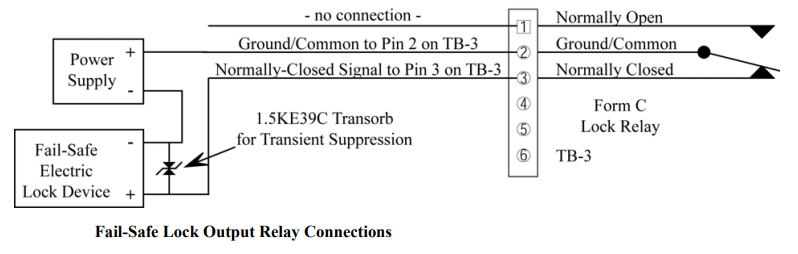

Wiring a fail-safe lock to the TB3 terminal block of the PXL controller




    • Related Articles

    • Connecting a Fail-Secure Lock

      Wiring a fail-secure lock to the TB3 terminal block of the PXL controller ​

    • Connecting an Alarm Output Relay

      Connecting an Alarm Output Relay Alarm Output Relay Connections

    • PXL-500P MS Reader Connecting

      Connecting a Keri Systems Proximity Reader to a PXL-500P/PXL-510P • The "A" reader is wired to TB5. • The "B" reader is wired to TB6.

    • Global Lock, Lockout and Lockdown - Using PXL-500 Controllers

      The global lock feature uses a dedicated input on the satellite board installed on the primary controller. This option will not appear if a satellite board is not installed. When the global lock input is triggered all online and functioning doors on ...

    • Connecting a General Purpose Input

      The general-purpose input is used in conjunction with the programmable input/output feature of the Doors access control software. There are three possible uses for the general-purpose input. • the primary controller (#1) may be figured for either ...
