Create a New Site

Create a New Site

1.0 Introduction

Typically a site will be a physical subnet - but you can add multiple hubs to a site that are located on different subnets - as long as each subnet has an active internet connection. Each site requires at least one hub that will be configured for the hardware type installed at the site. A hub is limited to 32 doors per controller type.


Notes:
  • The site defines the hardware type to be used.

  • Every system needs at least one site.

  • The hub is claimed and assigned to the site.

  • Multiple hubs can be assigned to the same site (if more than 32 doors are on the system), or if the controllers are in different physical locations or subnets.

  • If adding multiple hubs to the same site they must be of the same hardware type.

  • Multiple sites (and multiple hubs) must be used if controllers will be located in different geographical time zones.

2.0 Site Setup Steps

  1. Log into the Borealis web portal at: keri.aetheros.net.
  2. On the left-side of the screen, click on Sites.
  3. The Sites screen will open.

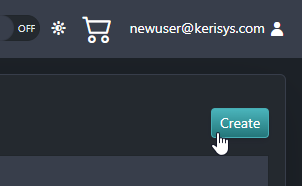

  4. Click the CREATE button located on the right.


    Site Create Button

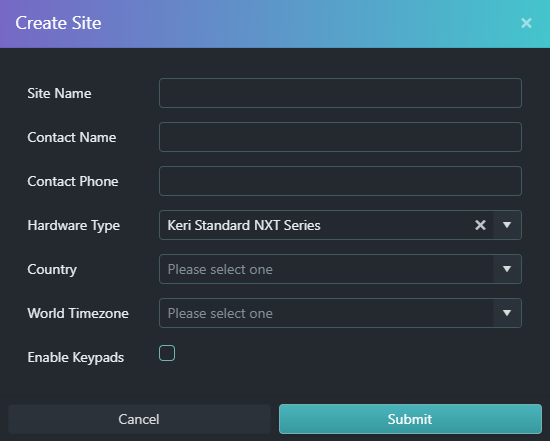

  5. A new create site form will appear.

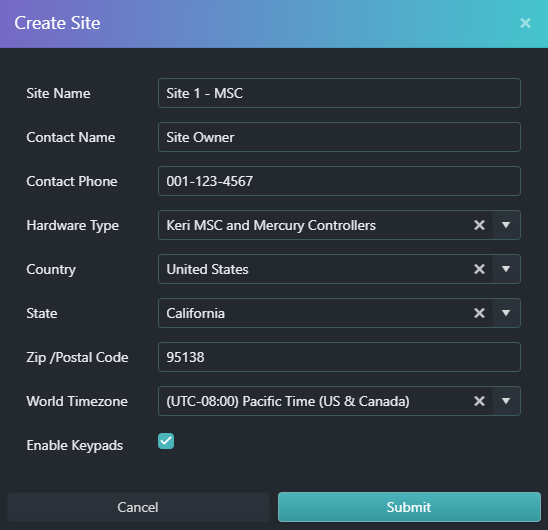

  6. Enter a name for the new site.
  7. Enter a contact name for the site.
  8. Enter a contact phone number for the site.
  9. Select the hardware type that will be used.
  10. Select the country where the site is located.
  11. Select a state (where applicable).
  12. Select the world time zone to apply to the site.
  13. Select to enable keypads on the site (if the site uses readers that have keypads).



  14. Click the submit button.

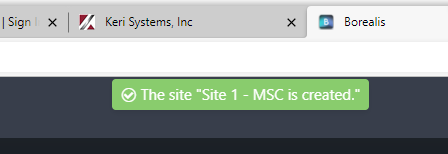

  15. At the top of the screen, you will see a message that the site has been successfully created.







Create a Site and Claim a Hub
