Direct RS-232 Connection to the PXL Network

Direct RS-232 Connection to the PXL Network

Direct Serial Connection – Controller to PC

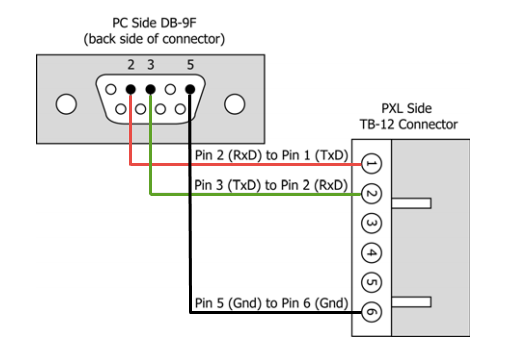

If the host computer has a male DB-9 connector on the serial port, you must use a Keri Systems KDP-552 cable or create a cable according to the drawing below.
