Do you have a wiring diagram for the RM3 module?

Do you have a wiring diagram for the RM3 module?

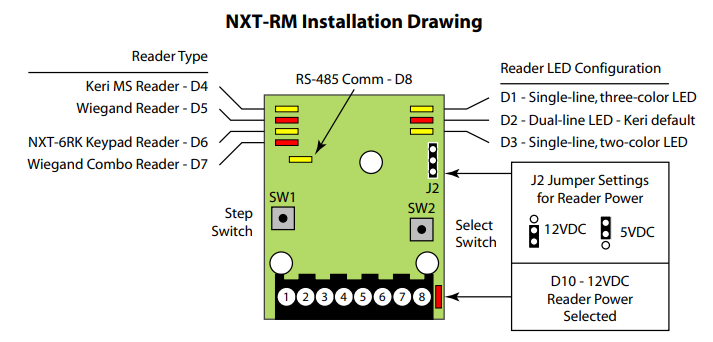

Here is a wiring diagram for the NXT RM3 Reader Interface Module:

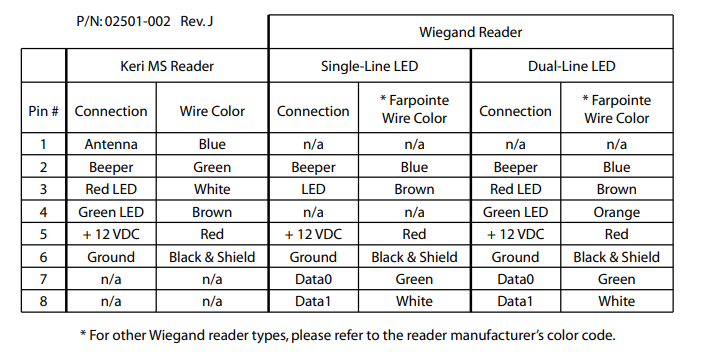

Reader Wiring
