Doors.NET System Capacities

Doors.NET System Capacities


This document provides a features and capacities comparison between the Basic, Corporate and Elite versions of Doors.NET. The Basic version of Doors.NET is free-of-charge. There is a charge for the Corporate and Elite versions.

The second table provides a features and capacities comparison between the PXL-500, NXT and NXT-MSC (Mercury-Powered) controller types.

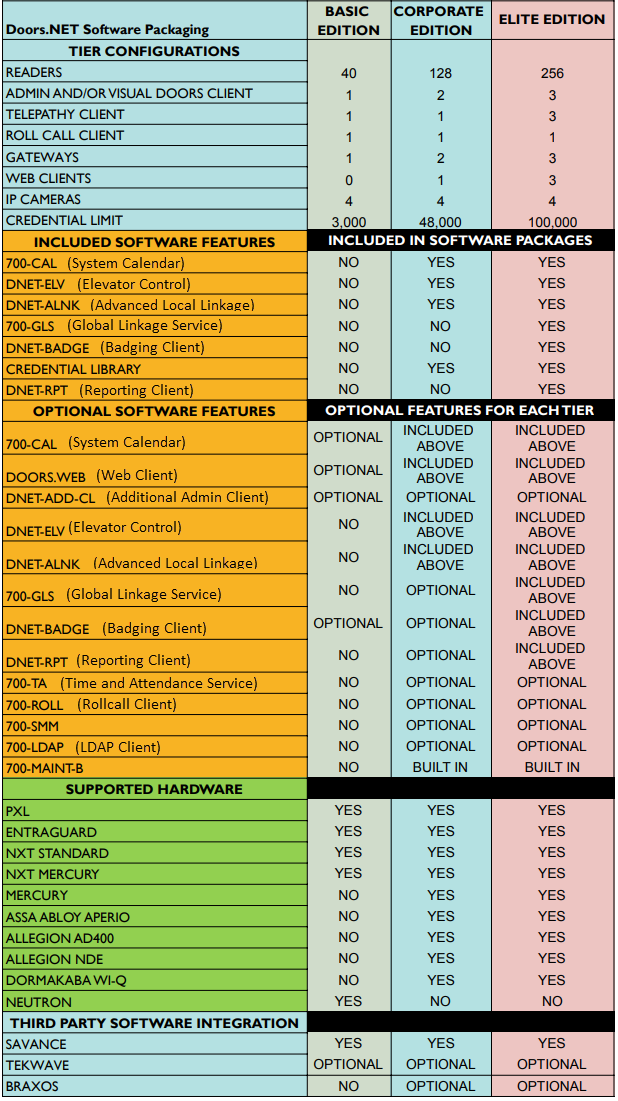

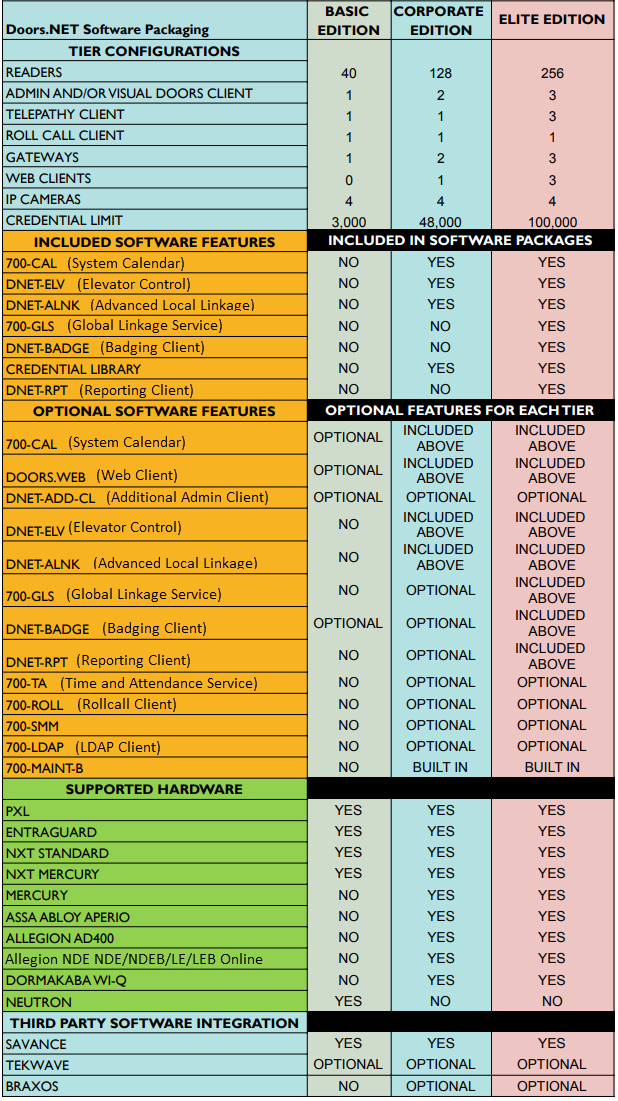

Software Features and Capacities

Note: The credential limit for Neutron (under the Basic tier) is 1,000 credentials. This isn't shown in the table below.




Hardware Features and Capacities

Hardware Platform PXL-500 NXT NXT-MSC
Basic Level Reader Count 40 128 256
Professional Level Reader Count 512 512 512
# of Inputs Included (Basic) 1024 1024 1024
# of Inputs Included (Corporate and Elite) 2048 2048 2048
Max # of Cardholders
(Controller's memory)
65,536 48,000 100K-145K (adjustable)
Controller to Host Communication RS-232, Modem, TCP/IP (with LAN-520) TCP/IP TCP/IP
Controller Networking RS-485, TCP/IP with (LAN- 520 and NC-485) TCP/IP TCP/IP
On-Board TCP/IP No Yes Yes
Controller Reader Count 2 2 or 4 2 or 4
Firmware Updating Prom Flash Flash
Maximum Offline Transactions 3,640 10,000 50,000
Supervised Inputs No Yes, 4 state Yes, 6 state
Unsupervised Inputs Yes Yes Yes
Re-assignable I/O No Yes Yes
Maximum Relay Pulse Time 255 seconds 18h, 12m, 16s 18h, 12m, 16s
Tamper Function Optional Yes Yes
Warranty 2 yrs 2 yrs 2 yrs
AutoConfiguration of Hardware Yes Yes Yes
Manual Configuration of Hardware No No Yes
Hardware Diagnostics in Software Yes Yes Yes
AutoUSB Support No Yes Yes
Reader Types Supported MS, Wiegand, Proximity, Magnetic Stripe (Wiegand Output), Bar-Code, Keypad & Biometric MS, Wiegand, Proximity, Magnetic Stripe (Wiegand Output), Bar-Code, Keypad & Biometric MS, Wiegand, Proximity, Magnetic Stripe (Wiegand Output), Bar-Code, Keypad & Biometric, OSDP
Change Reader Operating Modes No No Yes
In/Out Reader Support No No Yes
In/Out Direction Tracking Yes Yes Yes
Card Format Designer No No Yes
Operator Partitioning by Controller No Yes Yes
Time Schedules 32, w/ 4 intervals 64, w/ 50 intervals 255, w/ 12 intervals
Holidays per List/Type 32 32 255
Holiday Types, Lists 3 8 8
Holidays Maximum # 96 256 256
Auto DST Adjust North America Only Yes Yes
Customizable DST Adjust No Yes Yes
Access Groups per Cardholder 1 8 32
Elevator Control Yes No Yes
Elevator Access Groups No N/A Yes
Local APB Yes No Yes
Global APB No No Yes, with Global Linkage and Automation Software Module
Zoned APB No No Yes
Soft APB No No Yes
Hard APB No No Yes
Timed/User APB No No Yes
Timed Hard/Soft APB No No Yes
Nested APB No No Yes, with Global Linkage and Automation Software
(optional with Corporate or Elite)
Task Scheduling Yes, optional with Corporate or Elite Yes, optional with Corporate or Elite Yes, optional with Corporate or Elite
Temp Card - Time/Date Yes Yes Yes
Temp Cards - Use Count No No Yes
Dual Verification (Card + PIN) Yes Yes Yes
Rollcall Basic Yes Yes Yes
Advanced Rollcall/Muster Yes, with Roll Call Client Yes, with Roll Call Client Yes, with Roll Call Client
Door Monitor with Live Video and Photo Yes Yes Yes
ADA Support by Cardholder No Yes Yes
First Person In Yes Yes Yes, by User Group
2 Man Rule No No Yes
Basic I/O Link Actions No Yes Yes
Local Linkage (HW or
SW event-driven)
No No

Yes (Requires Local Linkage

Automation Module)

Global Linkage (HW or
SW Event-driven)

Yes, optional with Corporate or Elite

Yes, optional with Corporate or Elite Yes, optional with Corporate or Elite
Time, Follow, Latch Output Functionality No Yes Yes
Mantrap/Airlock/Sally Port Yes, with 3rd party interlock device No Yes
Global Lock Yes Yes Yes
Global Lockout/Lockdown Yes (requires FW 08.6.9) Yes Yes
Global Unlock Yes Yes Yes
Manual Control of
Outputs and Doors
Yes Yes Yes
Timed Temporary Unlock Yes Yes Yes
1 Button Software Global Lock Yes Yes Yes
1 Button Software Global Lockout Yes (requires FW 08.6.9) Yes Yes
1 Button Software Global Lockdown Yes (requires FW 08.6.9) Yes Yes
1 button Software Global Unlock Yes Yes Yes
Situation Manager/ Threat Level No No Yes, with Advanced Situation Manager Software Module (optional with Corporate or Elite)
