1.0 Entraguard ONE/ONE+ Connections

Edited Wiring Diagram

  • The antenna must be connected when using the Wi-Fi connection method. The antenna can be easily connected using a flat-head screwdriver to carefully press the connector onto the small round socket located on the PCB.

2.0 Wiring a Maglock

Maglock Wiring

  • + of the 12VDC power-supply is wired to the common of the Entraguard.

  • - of the 12VDC power-supply is wired to the - of the maglock.

  • + of the maglock is wired to the N/C of the Entraguard unit.

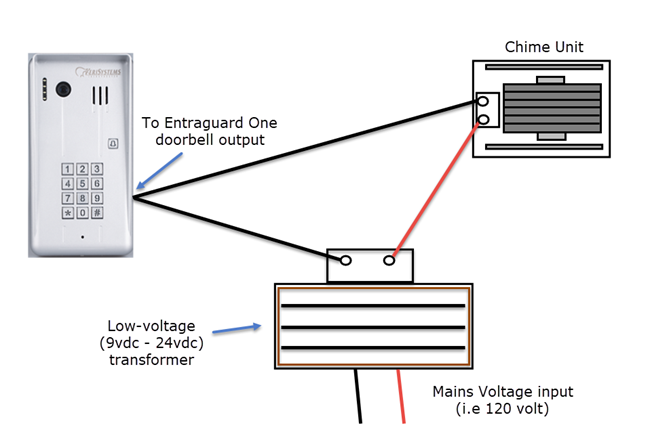

3.0 Wiring a Door Chime
