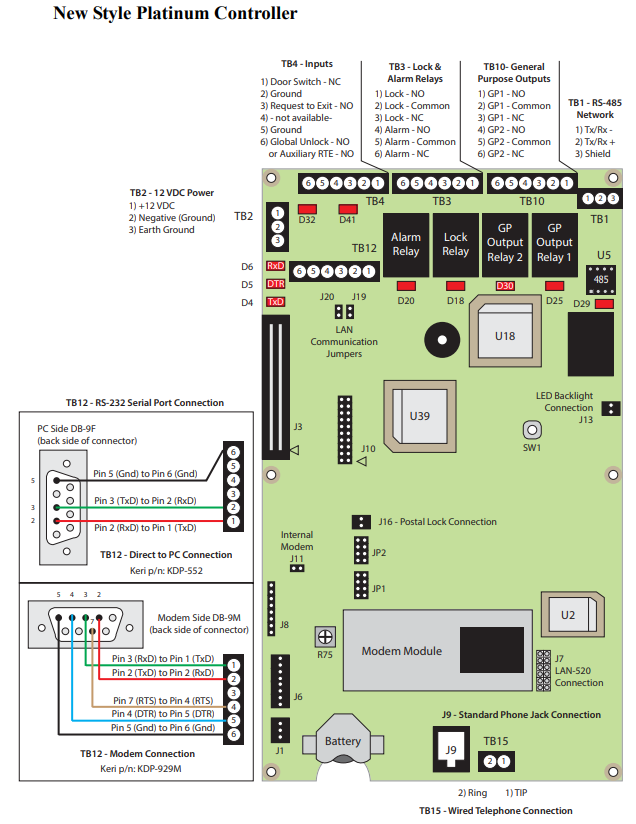

Entraguard Platinum Wiring Diagram

• Related Articles

• Entraguard Silver Wiring Diagram

• Entraguard Titanium Wiring Diagram

• Entraguard Titanium Wiring Diagram

• EntraGuard Platinum Firmware Release Notes v9.2.02

  EntraGuard Platinum Firmware Release Notes v9.2.02 - 01970-008 Rev C (attached).

• Entraguard Platinum Specifications

  Specifications: • Capacity: Up to 5,000 Tenants • Outputs: Door Relay, Alarm Relay, 2 additional programmable relays • Operating Temperature: +5º to 140º F (-15º to 60º C) with heater: -20º to 140º F (-29º to 60º C) • Input Power: 12 VDC @ 1 A • ...
