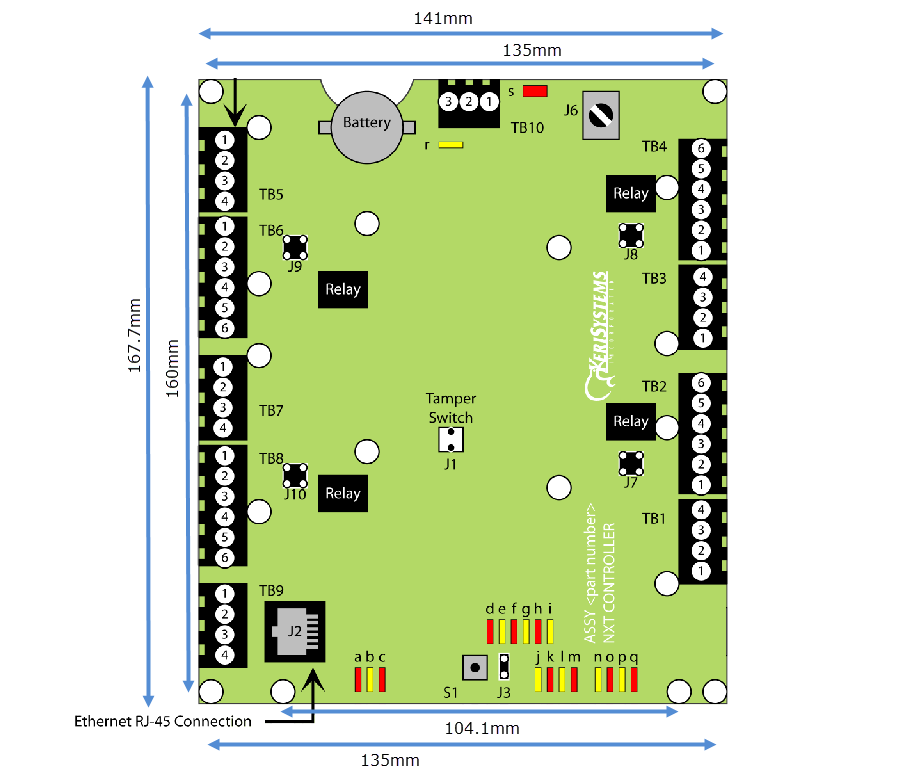

NXT 2D/4D Controller Dimensions

• Related Articles

• NXT 4-D Controller Wiring Diagram

• NXT 4D Controller Data Sheet

  NXT 4-Door Controller Data Sheet (attached)

• NXT 2D Controller Data Sheet

  NXT 2-Door Controller Data Sheet (attached)

• NXT 2D/4D Controller Specifications

  Size (Enclosure): 13.125” H x 10.625” W x 3.06” D (33.34 cm x 26.99 cm x 7.77 cm) Size (PC Board): 5.6” H x 6.6” W x 2.55” D (14.28 cm x 16.83 cm x 2.55 cm) Weight (In Enclosure): 4.95 Lbs (2.25 Kgs) Input Voltage: + 12 VDC nom. (10 - 14 VDC) Current ...
