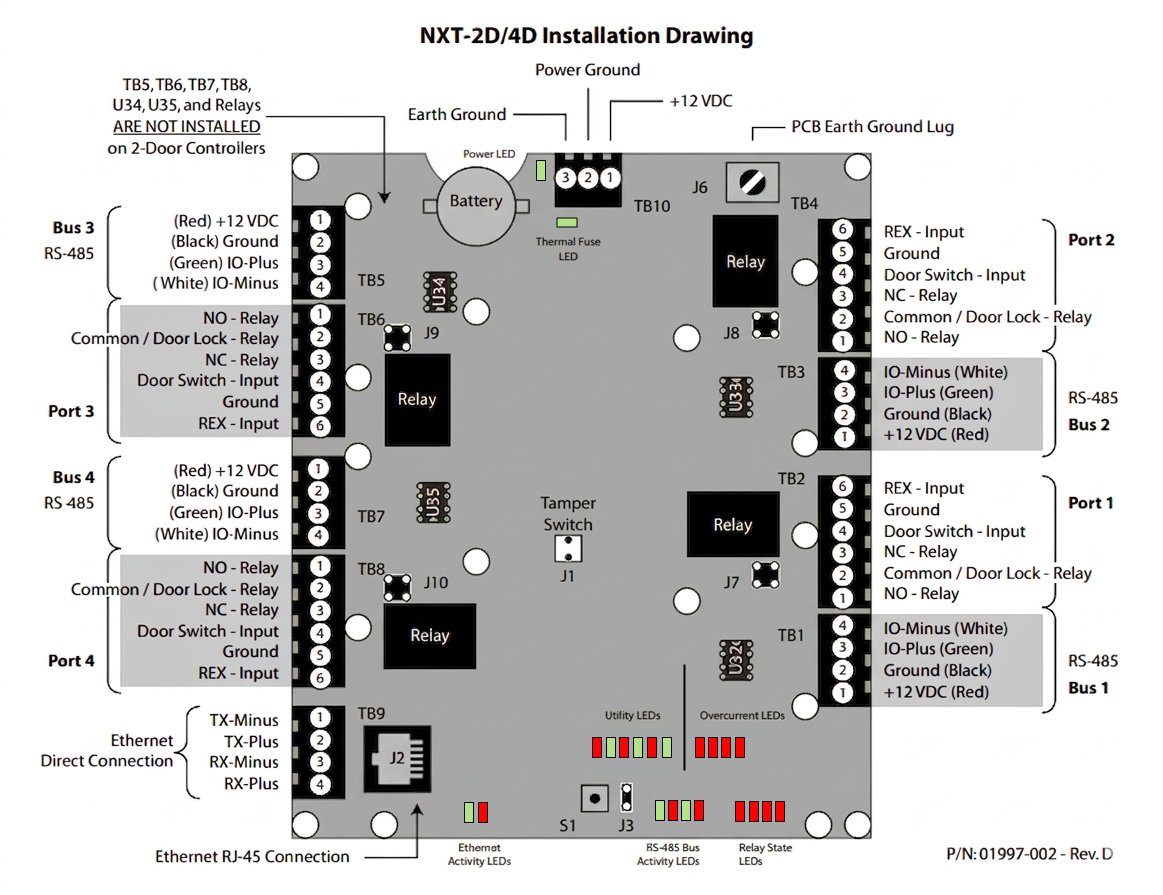

NXT-MSC Controller Wiring Diagram

NXT-MSC Controller Wiring

​

• Related Articles

• NXT-MSC 2D/4D Controller Hardware Installation Guide

  1.0 Introduction This document contains basic information related to installing NXT-MSC 2-door and 4-door controllers. Notes: The NXT-MSC controller has recently been updated from a green PCB to a black colored PCB. All NXT controllers and Keri ...

• NXT-MSC - I/O Control Using MR16IN and MR16OUT Modules

  1.0 Introduction Using Doors.NET v5.2.0, you can connect Mercury MR16IN and MR16OUT modules to the RS-485 port of an NXT-MSC controller after configuring the controller bus to the Mercury Security protocol. Each MR16IN or MR16OUT module has 16 inputs ...

• NXT-MSC Fail Safe Lock Wiring

  Wiring a fail-safe lock to an NXT-MSC 2D or 4D controller:

• NXT-MSC Fail Secure Lock Wiring

  Wiring a fail-secure lock to an NXT-MSC 2D or 4D controller:

• NXT-MSC 4D Elevator Control Wiring

  NXT-MSC 4D Controller
