1.0 Introduction

This document contains basic information for the installation of the NXT-MSC
(Mercury-Powered) 2D (2-door) and 4D (4-door) controllers.



Notes:

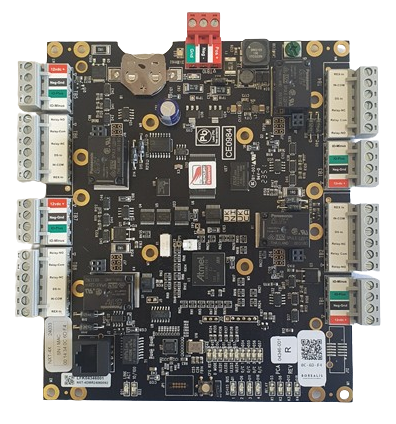

  • The NXT-MSC controller has recently been updated from a green PCB to a black colored PCB.
  • All NXT controllers and Keri peripherals will also be updated to black PCBs. The older (green PCBs) are completely interchangeable with the new (black PCBs).



2.0 Important Note:

Keri Public Statement on the Amazon Key



Keri Systems, Inc. has updated its policy regarding the integration of
Amazon devices with Keri Systems controllers.



We are pleased to inform you that Amazon has now provided official installation
documentation for Keri products within their installation app. As a result, Keri Systems
will allow Amazon devices to be installed alongside Keri controllers when following the
guidelines and best practices provided by Amazon.



This change reflects our commitment to supporting secure and flexible access solutions
that enhance customer convenience, including use cases such as Amazon delivery access.



Please note the following:

  • Installers must follow Amazon’s official documentation and procedures for
    installing Amazon devices with Keri hardware.
  • Keri recommends that all installations be performed by trained professionals
    familiar with both Keri and Amazon device requirements.
  • Any damage caused by improper installation or failure to follow approved
    documentation may still void the controller warranty.
  • Responsibility for any security concerns or access control changes introduced
    by the integration rests with the Building Owner or Manager.

Keri Systems remains dedicated to providing robust access control solutions.
We will continue to monitor and evaluate integrations to ensure the safety
and satisfaction of our customers.





3.0 Product Specifications

3.1 Unit Dimensions

• NXT 2D/4D controller PCB

- 6.75 inches high by 6.00 inches wide by 1.75 inches deep, including wiring connectors

- (17.15 cm by 15.25 cm by 4.45 cm)

• Enclosure

- 13 inches high by 9 inches wide by 4 inches deep - (33.02 cm by 22.86 cm by 10.16 cm)

• Operating Temperature/Humidity Range

- 32°F to 150°F (0°C to 60°C)

- 0% to 90% Relative Humidity, non-condensing



3.2 Controller Power Requirements

Input Power

• 10 to 14 VDC @ 2.5 A (maximum current draw for a fully loaded NXT-2D/-4D controller)

Output Relay Contact Rating

• 1 Amp @ 24 VDC

Current Draw Requirements as 12VDC

• 650 mA max for an NXT-4D Controller

• 570 mA max for an NXT-2D Controller

• 210 mA max for each NXT-4x4

• 85 mA max for each NXT-1R, NXT-3R, NXT-4R, or NXT-5R Reader

• 115 mA max for each NXT-6RK Reader

• 50 mA max for each NXT-RM Reader Interface Module



Note: Keri recommends using separate, linear power supplies for the controller and the electronic locking device (magnetic lock, door strike, etc.). Should you decide to use the same linear power supply for both the controller and the electronic locking device, ensure the linear power supply provides enough current to drive the controller, the locking device, and any peripherals that may be connected (i.e., reader, 4x4, RIM), including an adequate safety margin.



3.3 Input Device Configuration - 3 Inputs

• Door Sense - normally closed

• Request to Exit - normally open

• Global Unlock - normally open,

or Auxiliary RTE A-Door - normally open



3.4 Controller Memory Retention

• 5 year lithium battery back up to support controller RAM and real-time clock.
The controller 3v backup battery is a CR2032.



3.5 Buffer Capacity

  • Up to 200,000 Cardholders (when using Doors.NET)
  • 10,000 buffered events

3.6 Reader Capacity

NXT2D Controller

  • 4 with NXT Readers *
  • 2 with Wiegand or MS Readers

* 4 Reader capacity requires the Mercury Firmware option and two NXT Exit Readers



NXT4D Controller

  • 8 with NXT Readers *
  • 4 with Wiegand or MS Readers

* 8 Reader capacity requires the Mercury Firmware option and four NXT Readers

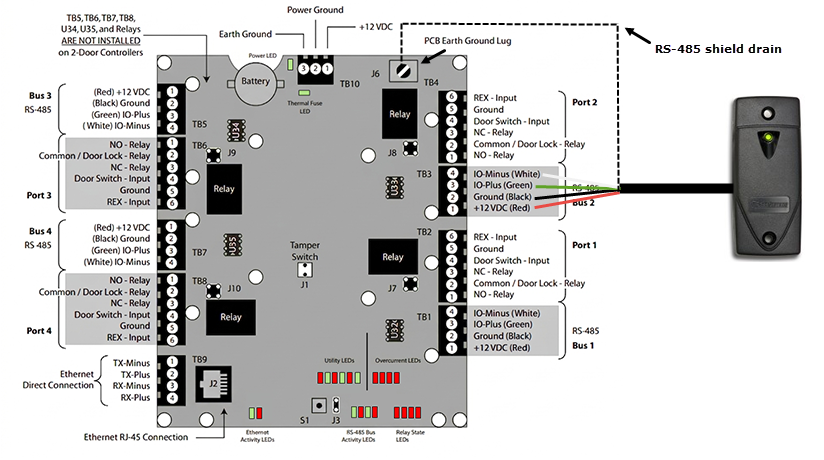

4.0 NXT Controller Wiring Diagram

See the table in section 6.0 for LED definitions.



Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference in which case the owner will be required to correct the interference at the owner’s expense.



5.0 Lock Power, Wiring and Transient Suppression

Important Notes:

  • Ensure the power-supply meets the power-requirements of all connected peripherals. A 2-door controller should use a 3 amp power-supply and a 4-door controller should use a 5 amp power supply (even if the locks are powered separately).
  • Locks with a current draw greater than 1amp should be powered separately.
  • Maglocks should be on their own supply due to the power surge created by these locks when locking and unlocking that could affect controller operation.
  • Keri recommends the use of door locks from dormakaba, ASSA, and Allegion, as well as from SDC and Dortronics.
  • Add transient suppression across electric devices attached to a controller output.

  • Use an isolation relay (IRP-1, or equivalent) when attaching to a parking gate, a
    turnstile, or any application using a large electric motor.

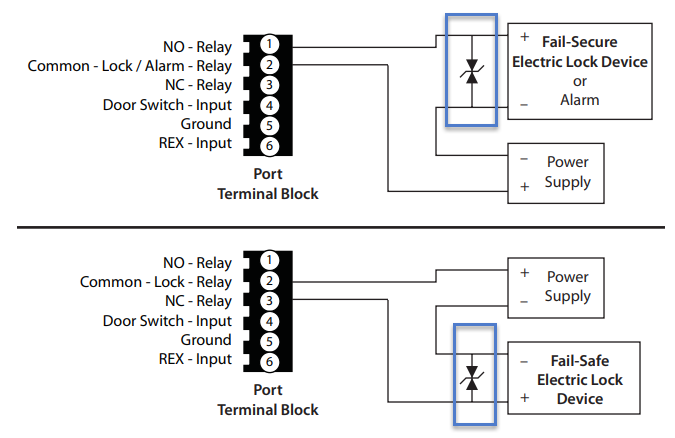

5.1 Installing Transorbs for Transient Suppression

Transorbs are provided with the controller ship kit. They are used to protect the controller from
voltage spikes induced on the port wiring by absorbing the excess voltage and slowly releasing it
back into the circuit. Keri strongly recommends wiring in the transorbs provided with the controller
ship kit. Refer to the transorb wiring diagram below.



Port Protection

Note: The transorbs that Keri provides are non-polar; they can be installed in either orientation.


5.2 Using Isolation Relays

For locking devices that may induce heavy voltage spikes – Mag Locks and devices with heavy-duty solenoids such as turnstiles, vehicle gates, and overhead doors – Keri recommends using isolation relays. Keri has an Isolation Relay Kit (p/n IRP-1). Please refer to the IRP-1 Isolation Relay Installation Guide (p/n 01833-001) for detailed information.

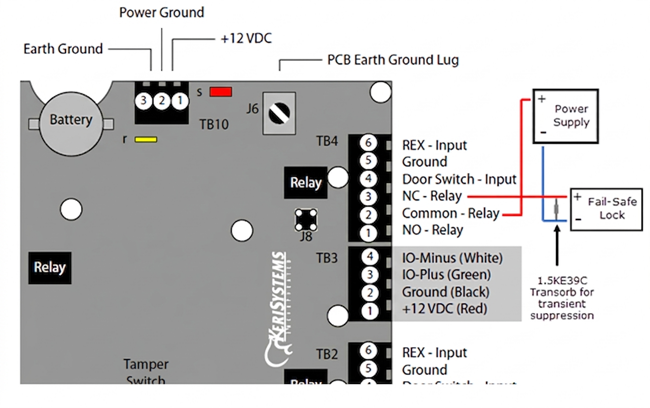

5.3 Wiring a Fail-Safe Lock

Maglock Fail Safe

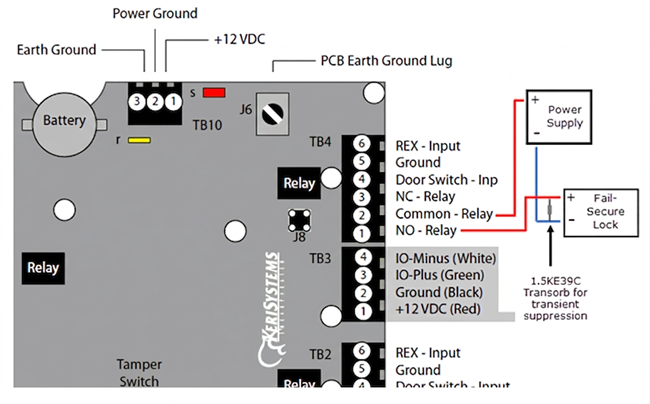

5.4 Wiring a Fail-Secure Lock

Maglock Fail Secure



6.0 Controller LED Definitions

PurposeLEDLED Behavior
Network Activity LEDsa and b (D21
and D22)
Indicates that the controller is connected to the local area network. When the controller is connected to the network LED a (D21) will be quickly flashing green and LED b (D22) will be solid red.


Utility LEDs











c (D48) - CFG RSTc (D48) - Controller heartbeat indicator - this LED will blink red approximately once every second to indicate the controller is healthy and functioning correctly.
d (D49) - D MODEd (D49) - Gateway communications LED - this LED flickers green every few seconds to indicate the controller is online to the MSC gateway. This LED also flashes quickly when a controller firmware upgrade is in progress.
e (D50) - ULED1

e (D50) - UART - Port 1 traffic indicator - solid red when the controller is communicating to device on bus 1.

f (D51) - ULED2f (D51) - UART - Port 2 traffic indicator - solid red when the controller is communicating to device on bus 2.
g (D52) - ULED3g (D52) - UART - Port 3 traffic indicator - solid red when the controller is communicating to device on bus 3.
h (D53) - ULED4h (D53) - UART - Port 4 traffic indicator - solid red when the controller is communicating to device on bus 4
RS-485 bus
overcurrent LEDs

(Note: A 2-door controller does not have LEDs k (D56)
or l (D57).)
i (D54) - Bus 1 Over Currenti (D54) - Solid red when bus 1 is drawing too much current and has shut-down.
j (D55) - Bus 1 Over Currentj (D55) - Solid red when bus 2 is drawing too much current and has shut-down.
k (D56) - Bus 1 Over Currentk (D56) - Solid red when bus 3 is drawing too much current and has shut-down.
l (D57) - Bus 1 Over Currentl (D57) - Solid red when bus 4 is drawing too much current and has shut-down.
RS-485 bus communication LEDs
  • m (D1)
  • n (D6)
  • o (D11)
  • p (D16)

These LEDs flash green quickly when the controller is communicating to a device. If there is no device or communication on a particular bus then the LED will blink green approximately once every 2 seconds.

Notes:

  • A 2-door controller does not have LEDs O (D11) or
P (D16).

  • These LEDs will also be solid green when the controller is in a factory reset state and has no access control configuration in memory.

Relay state LEDs
  • q (D3) - Relay 1 state
  • r (D8) - Relay 2 state
  • s (D13) - Relay 3 state
  • t (D18) - Relay 4 state

These LEDs are solid red when the corresponding relay is activated. For example, using the default controller settings, D3 LED will be solid red when door 1 is unlocked.



Note: A 2-door controller does not have LEDs s (D13) or t (D18).

Thermal fuse LEDu (D23)If LED u (D23) is green, the power wires are reversed; if LED u is red, the unit is drawing too much current.
Power LEDv (D26)The v (D26) LED is solid green when the controller is receiving the correct input power.



7.0 Wiring Instructions

7.1 Terminal Blocks



Note: Screws on terminal blocks must be tightened securely.





7.2 Connecting the Earth-Ground and the 12VDC Power

Power wiring



Note: TB2 is colored red to make it easier to tell it apart from the other connectors.





7.3 Controller Earth-Grounding

To ensure optimum earth-grounding of the controller and its connected peripherals, you should make a quality earth-ground connection to the metal enclosure lug (which displays an adjacent earth-ground symbol).



This good-quality earth-ground at the enclosure lug will provide an earth-ground for the entire enclosure - and will therefore ground anything that is connected to the metal enclosure - (the four metal screws at each corner of the PCB) - plus, through circuitry on the PCB, this includes anything connected to the lug marked J6 or pin 3 of the TB10 power connector.



In addition, the enclosure itself must be earth grounded to a good quality ground point external to the enclosure for a complete path to ground.

The shield/drain wire of any reader/peripheral cables MUST be terminated to one of the following points: any corner screw attaching the controller to the enclosure, Pin 3 of TB10, the green ground lug (J6) on the controller, or the ground lug of the enclosure. Failure to properly earth ground the reader/peripheral drain wire may result in unreliable communication or operation of the attached peripheral.



8.0 Cable Requirements

Notes:

8.1 NXT Reader and 4x4 Modules

RS-485 bus runs can daisy-chain together an NXT-4x4 and NXT-Reader on one line. The total cable run distance should be less than 500 feet from the NXT controller for runs with two Readers or one Reader and one 4x4, and less than 1,000 feet for single Reader runs.



  • Cable resistance causes a drop in voltage at the end of long cable runs. Ensure the appropriate power and current for your device is available at the device at the end of the cable run. Heavier gauge cable reduces this effect.

  • Keri does not recommend hot-plugging a Reader, RIM, or 4x4 into an NXT controller. Remove power from the controller prior to connecting these devices.



Recommended NXT Reader and 4x4 Cable Options

Cable options

a. Keri recommends this cable type for best system performance.

b. Keri’s preferred low-cost option. Keri has no suggested vendor for this type of cable.

c. Use care when routing this type of cable as it can be damaged easily - making the system more susceptible to EMI.


8.2 Controller Power, Inputs, and Outputs Cable Requirements

ConnectionTotal Cable Run Length# of ConductorsShielded?Stranded?AWG
Controller Power250 feet [a]2NY18
Earth-GroundShortest path [b]1NN18
Inputs and Outputs500 feet2NY22



  1. To meet CE and C-tick regulations, the length of the controller power line can be no longer than 3 Meters (9.85 feet).
  2. Use the shortest possible path from earth ground point to PCB. Connect the earth ground only to the designated pin on the terminal block. This is important as all transient protection for the unit is made through this earth ground connection. For unit protection, the earth ground connection should always be made first.
  3. Values listed are minimums. Individual input and output devices may have more specific requirements.



Notes:

  1. The Lock Output relay may require a heavier gauge of wire depending upon the current demands of the lock and the length of the lock wiring run.
  2. Cable resistance causes a drop in voltage at the end of long cable runs. Ensure the appropriate power and current for your device is available at the device at the end of the cable run. Heavier gauge cable reduces this effect.
  3. Keri does not recommend hot-plugging a Reader, RIM, or 4x4 into an NXT controller. Remove power from the controller prior to connecting these devices.



8.3 Earth-Ground Cable Requirements

Single conductor, AWG 18 wire (or a larger gauge). Ground wire is green with or without yellow tracer.



8.4 Keri Systems Proximity Readers

  • six conductor, shielded, stranded, AWG 24 wire (Belden 9536 or a larger gauge).
  • four conductor, shielded, stranded, AWG 24 wire (Belden 9534 or a larger gauge)
    for the MS-4000 only (there is no beeper or LED in the MS-4000).



MS Reader Specs



8.5 Wiegand Compatible Readers

Four to seven conductor, shielded, stranded, wire – depending upon the Wiegand reader’s requirements. A minimum gauge of AWG 24 is required for data transfer with a 500-foot maximum run length per Wiegand specification.



8.6 Keri NXT Readers

NXT reader extension cable type is: Belden 9841 or equivalent (one twisted pair) for data combined with Belden 8461 or equivalent for the 18x2 power cable or Belden 8723 or equivalent (two twisted pairs in one jacket).



Note: CAT5/CAT6 cable can be used but is not recommended because it is more brittle than shielded, stranded cable and is therefore more susceptible to being damaged.

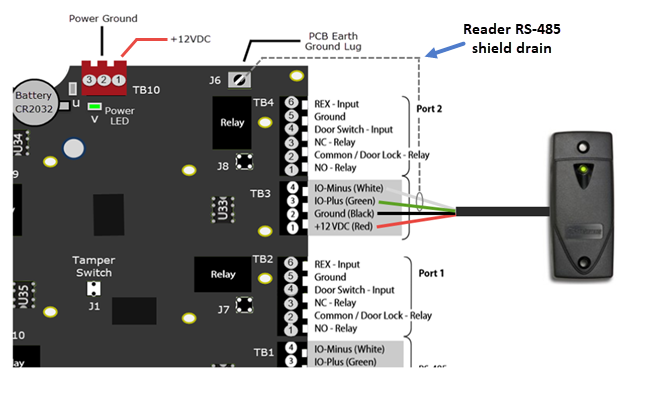

8.7 Reader Grounding

The shield/drain wire of any reader/peripheral cables MUST be terminated to one of the following points-any corner screw attaching the controller to the enclosure, Pin 3 of TB10, the green ground lug (J6) on the controller, or the ground lug of the enclosure. Failure to properly earth ground the reader/peripheral drain wire may result in unreliable communication or operation of the attached peripheral.



NXT Reader Grounding



9.0 Controller Factory Reset

Keri recommends resetting NXT-MSC controllers the first time these controllers are powered on.



9.1 Reset an NXT-MSC Controller

Note: Resetting an NXT controller with Mercury firmware will restore the controller to a factory default state. It removes all network configuration data assigned to the controller such as the IP Address, Subnet Mask, and Gateway address. Keri recommends resetting NXT controllers the first time these controllers are powered on.



Perform the following to reset an NXT controller with Mercury Firmware:

  1. Ensure there is a jumper shorting both pins of J3 (next to the white S1 button)
  2. With the controller powered on, press S1 once.
  3. Power the controller off (while the DMODE LED is solid green).
  4. Release the S1 button and the reset process begins. This takes about 20 seconds.
  5. The reset process is complete when LED “d” (D48) starts blinking about once a second.

10.0 Back-Door Web Browser Access

When an end user enters the web browser configuration interface and changes the password from the default to a unique value, the default password is disabled. Should the unique password be lost, the user is locked out of the web browser. The new firmware provides a temporary window of access for the web browser, provided you can access the controller itself. This access method is available in controllers with firmware v1.01.40 and greater.



On the controller, press S1 twice to start a five minute window in which the default password is enabled allowing the web browser to access that controller. After five minutes the default password is disabled and the unique password is enabled.



Keep in mind, a hardware reset will restore the factory default web browser password, as well as
manually resetting the controller to factory default values.
