PXL-500 Controller Offline Flowchart

PXL-500 Controller Offline Flowchart

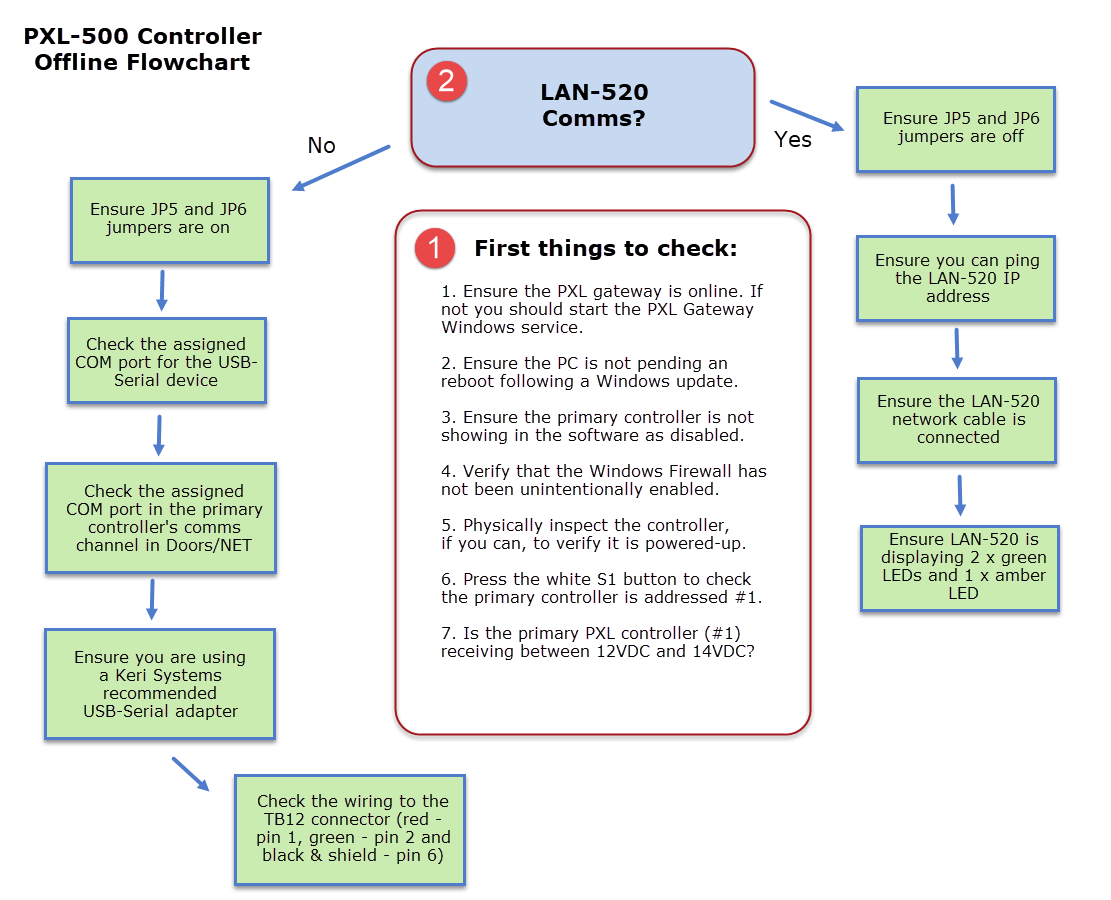

This flowchart is aimed at helping installers to troubleshooting an offline PXL-500 controller network.
