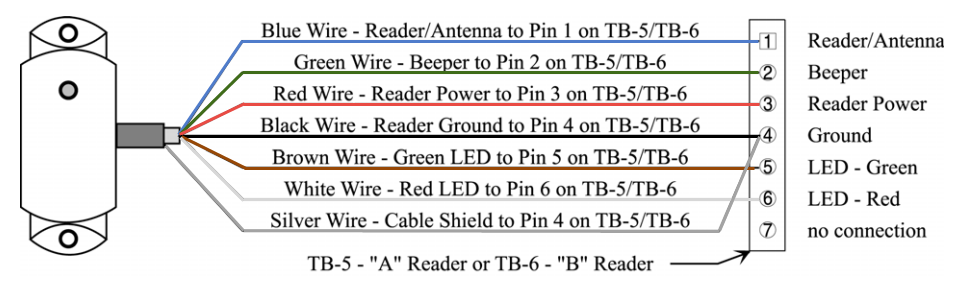

Connecting a Keri Systems Proximity Reader to a PXL-500P/PXL-510P


• The "A" reader is wired to TB5.
• The "B" reader is wired to TB6.
