Standard Versus Legacy PXLs in Doors.NET

Identifying Standard and Legacy PXL Controllers

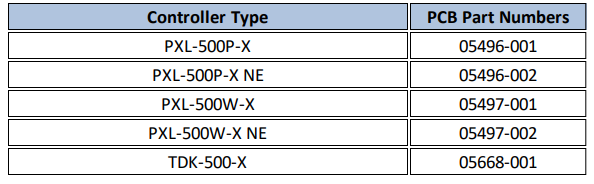

The following PCB part numbers are non Legacy PCBs.

All earlier PCB part numbers designate Legacy PCBs.

Standard Versus Legacy Entraguard Controllers

The easiest method for identifying Standard versus Legacy Entraguard controllers is through the firmware revision of the individual controllers.

These firmware revisions are recognized as Standard by Doors.NET:

• Titanium/Silver v7.8.02 or greater

• Platinum v9.2.02 or greater

These are the firmware revisions recognized as Legacy by Doors.NET:

• Titanium/Silver - v7.6.09 and v7.6.13

• Platinum - v9.1.09

The standard firmware revisions have improvements in how Smart and Full Updates are performed that are required for operation in Doors.NET.
