1.0 Introduction
This document explains how to setup and use the Allegion AD-400 wireless locks with the NXT-MSC (Mercury Powered) controllers. The NXT-MSC controller connects to a PIM-400 via an RS-485 connection and the PIM-400 module communicates to the AD-400 locks securely using 900 MHz wireless technology.
The Schlage AD-400 locks have extensive functionality and operating modes and are combined units consisting of the electric lock, credential reader, Request-to-Exit and Request-to-Enter sensors, door position switch and tamper guard.
Configuring the locks is done using the Allegion SUS Android app and the supporting SUS-A Cable. The AD-400 locks are then linked to the PIM-400 module using the Doors.NET software.
![](https://static.zohocdn.com/zoho-desk-editor/static/images/file.png)
Note: Effective from Doors.NET v5.2.0 you can mix and match ENGAGE Gateways, PIM-400s and AD-300s on the same bus. You can add up to 8 x ENGAGE Gateways, 8 x PIM-400s or 32 AD-300s (to each controller bus). Adding one of these supported devices will reduce the number of other devices that can be added. For example, if 4 x ENGAGE gateways are added you will then be limited to adding 4 x PIM-400s or 28 AD-300s.
![](https://help.kerisys.com/galleryDocuments/edbsn189dd2a14d933a8e85d16c069de58c61cf6a7885d77e88ed452b287e957a0579935a90f44643aad992bfd6e78a2dd40e?inline=true)

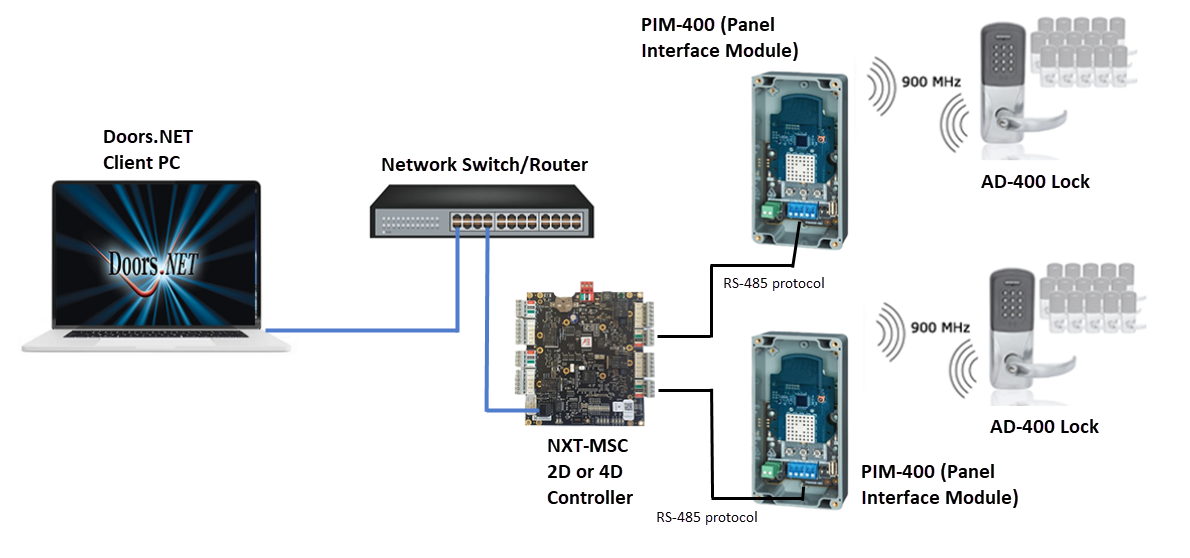

Maximum Number of AD-400 Locks Per PIM-400 and Per Controller
The maximum number of AD-400 locks per PIM-400 is 16.
The maximum number of AD-400 locks you can add to an NXT-MSC 2D controller is 64.
The maximum number of AD-400 locks you can add to an NXT-MSC 4D controller is 64.
Note: Effective from Doors.NET v5.2.0, when using NXT-MSC controllers you will need to delete the Keri NXT reader which is added to the bus by default and then configure the protocol on the bus to support the Schlage RSI protocol. It will then be possible to add the PIM-400 to the bus.
2.0 Hardware Requirements
2.1 Keri NXT Hardware Requirements
![](https://help.kerisys.com/galleryDocuments/edbsn720e3e239b6642bdb1b2b3c663401f9bd23992736d113e5c892beb0c8384cb4873d8aba8a071b6629cb9f935533e6e9a?inline=true)
- Requires NXT-MSC or Authentic Mercury controllers. Standard NXT or PXL controllers do not support Allegion wireless locks.
- The NXT-MSC controllers must be using the latest firmware (1.296) at the time of writing.
2.2 Allegion Hardware Requirements
![](https://help.kerisys.com/galleryDocuments/edbsn714d0852ae1739507339c58fb3239b429e408dcabf1c88ad3c2dd6a5a01536b8fd26de95c46c973bb1d5bb0af01087aa?inline=true) | | ![SUS App and Cable](https://www.keri-kb.com/Content/Allegion/Images/SUS_and_Android.jpg) |
PIM-400/485 KRI Module | AD-400 Lockset | SUS For Android App and USB cable |
3.0 Software/Licensing Requirements
Access the License Manager to verify you have the correct license settings: Start menu >> All Programs >> Doors.NET >> License Manager.
- Current Doors.NET Software (v5.3.0 at the time of writing)
- Mercury Powered controller licensing
- Mercury Gateway installed and configured
- Allegion enabled
The following screen shots are the required settings within the License Manager
3.1 License Capacities
- Number of Gateways - 1 or more
- Readers - Allegion - 1 or more
- Readers - Allegion per controller - 1 or more
![Allegion - Image 1](https://www.keri-kb.com/Content/Allegion/Images/Allegion_1.png)
3.2 Hardware Capacities
Supported Hardware
Allegion - True
Keri Systems - NXT (MSC) - True
![Allegion - Image 2](https://www.keri-kb.com/Content/Allegion/Images/Allegion_2.png)
3.2 User Interface
Distribution Interface - False
![Allegion - Image 3](https://www.keri-kb.com/Content/Allegion/Images/Allegion_3.png)
Note: Before getting started on setting up the AD-400 lock, verify the following:
- Ensure the AD-400 batteries have adequate voltage and are installed properly.
- The PIM-400 and AD-400 lock(s) have to be reset to factory defaults, (this will also remove any construction credentials).
The reset procedure is explained at the end of this document.
The Schlage Utility Software (SUS) is an application that runs on supported Android devices. It is used to configure, edit and program AD Series locks.
You can use the app to; edit the AD-400 lock properties, update the AD-400 firmware, couple the mobile device, set the date/time and run diagnostics.
The next sections assume that you have already:
- Downloaded and installed the SUS Android app.
- Connected the Schlage USB cable to your Android device (via USB-C) and to the AD-400 lock via standard USB.
4.1 Logging Into the App for the First Time
- Once the application is downloaded, you must change default password.
- Select User Type: Manager.
- Enter Default Password: 123456.
- You will be prompted to enter a new password and confirm the new password.
>> New password must not be a default password, subset or super set of default password.
- You must log in again with User Type: Manager and the new password.
4.2 Couple the Mobile Device to the AD-400
This section explains how to connect and couple the mobile device to the AD-400 locks:
Note: The mobile device must have file transfer via USB enabled to function properly.- Start the Schlage Utility Software for Android (SUS-A).
- Connect the SUS-A Cable to the mobile device. A pop-up will appear, “Allow Schlage Utility Software to access SUS A-CABLE?” Click OK to continue.
- Connect the SUS-A Cable into the lock’s USB port located at the bottom of the exterior housing.
![SUS USB Connection](https://www.keri-kb.com/Content/Allegion/Images/SUS_USB_Connection.png)
- Press the Schlage button twice to begin communication.
- The lock will be displayed on the screen.
- On the mobile device, select Device Options.
Remove the top inside lock cover.
Press and hold the Inside Push button. Then press and release the tamper switch three times.
Release the Inside Push button. On the lock, the Inside Push button LED will illuminate.
On the mobile device, select Couple Mobile Device to Device.
When Coupling is successful, a message will be displayed at the bottom of the screen 'Coupling with the device is successful'.
Note: The mobile device will use a default Coupling Password (123456) when coupling with a device. The Coupling Password should be changed to provide increased security for your locks.
5.0 Couple the PIM-400 With the Schlage™ Utility Software and Android App
AD-Series devices can be coupled, or authenticated, with the mobile device. This provides enhanced security by ensuring that the AD-400 will only communicate with mobile device(s) to which it has been coupled. Once the AD-400 has been coupled, the coupling password is passed to the lock from the mobile device during programming.
Note: Mobile devices with the same coupling password can program the same devices. Once the mobile device and the device are coupled, the coupling password is disabled in the PIM-400 and any mobile device with the correct coupling password will automatically couple with the PIM-400.
- Remove the PIM-400 cover.
Connect the mobile device to the PIM-400 using the SUS-A cable. The PIM-400 will be displayed on the mobile device screen.
- On the mobile device, select Device Options.
On the PIM-400, press and hold the LINK 1 button. Then press the LINK 2 button three times.
![PIM400 Diagram](https://www.keri-kb.com/Content/Allegion/Images/PIM400_Wiring_Diagram.png)
- On the mobile device, select Couple mobile device to Device.
When Coupling is successful, a message will be displayed on the mobile device screen.
6.0 Put PIM-400 Into Link Mode
- Connect the mobile device to the PIM-400.
Select Device Options.
- Select PIM Configuration for the connected device.
Select the Link tab.
- Select the door number from the drop-down box >> See the system administrator for the proper door number selection.
The PIM-400 will stay in link mode for up to 30 minutes.
- Put the lock (door) into link mode >> See the user guide that came with the lock for more information.
- The AD-400 will beep once when the linking is complete and the SUS app will display: 'Linking completed'.
The PIM-400 will automatically exit link mode once linking is complete.
7.0 Put PIM-400 Into Diagnostic Mode
- Connect the mobile device to the PIM-400 and select Device Options.
- Select Demo mode and then select the door number from the drop-down box.
• Card Data box: shows card data from credential when card presented to reader.
• Unlock on Read: if enabled allows the door to be unlocked upon the reading of a card: the OEM has the ability to disable this feature (grayed out).
8.0 Update the PIM-400 Firmware
For further information about updating the firmware on the AD-400 locks, or the PIM-400, refer to the SUS for Android User Guide.
- The full Allegion SUS for Android User Guide can be found here.
9.0 Programming the PIM-400-RS485 Address
The RS485 channel must be set to the lock. This will match the address that is automatically set to the lock when it is added to the Doors.NET software.
- In the Android SUS app, select Device Options >> PIM properties >> Edit.
- Select the correct RS-485 address. The address number is determined by how many modules will be added to each of the controller buses.
For example, if you are using a 4-door controller:
→ Bus 1 = The first PIM module on bus 1 is address 0, second is address 1, and so on...
→ Bus 2 = The first PIM module on bus 2 is address 0, second is address 1, and so on...
→ Bus 3 = The first PIM module on bus 3 is address 0, second is address 1, and so on...
→ Bus 4 = The first PIM module on bus 4 is address 0, second is address 1, and so on...
- Disconnect the USB cable from the PIM-400.
Other lock and PIM settings may be configured by selecting Door Properties or PIM Properties from within the app. Other editable items include: Heart Beat and Comm Loss Mode - for these item settings consult the SUS for Android User Guide.
10.0 Connecting the NXT-MSC Controller to the PIM-400
Wiring the PIM-400 to an NXT-MSC Controller
NXT-MSC RS-485 port PIM-400 |
PIN | Label | Wire Color | PIN | 485 Connector Label |
1 | 12VDC | -- No Connection -- | | -- No Connection -- |
2 | Ground | Black | 1 | Ground |
3 | IO + | Green | 4 | TDA - |
4 | IO - | White | 2 | TDB + |
11.0 Configuring Doors.NET for the AD-400 and PIM-400
This section assumes the NXT (MSC) 2-door or 4-door controller is online, configured and ready to add the AD-400/PIM-400 to the database.
Note: Effective from Doors.NET v5.2.0, when using NXT-MSC controllers you will need to delete the Keri NXT reader which is added to the bus by default and then configure the protocol to support the Schlage RSI protocol before adding the PIM-400.
(Refer to the NXT (MSC) controller Quick Start Guide for further details about setting up and configuring this controller type with Doors.NET).
- Log in to Doors.NET and go to Setup >> Hardware Setup >> All.
- On the hardware tree you will see the gateway node and the NXT (MSC) controller(s).
- Expand the controller and select the bus which the PIM-400 is connected to.
![Add PIM400 icon](https://www.keri-kb.com/Content/Allegion/Images/Add_PIM400_Icon.png)
- Select the reader which is added to the bus, by default.
- Click on the Hardware Browser tab at the top of the screen and click the Remove icon.
![Reader Remove](https://www.keri-kb.com/Content/Allegion/Images/Reader_Remove.png)
- The default reader (NXT-3R) will be removed from the bus.
- With the bus still selected, locate the Protocol (Serial) setting in the bus properties.
- Change the protocol (Serial) setting from Keri Systems to Schlage RSI.
![Bus protocol Schlage](https://www.keri-kb.com/Content/Allegion/Images/Bus_Protocol_Schlage.png)
- Save the bus settings.
- You will be prompted to reset the controller - so go ahead with the reset.
- From the hardware ribbon, with the bus selected, click the Add PIM-400 icon.
![Add PIM400 Icon](https://www.keri-kb.com/Content/Allegion/Images/Add_PIM400_Icon.png)
- Click the ACCEPT button and a PIM-400 will be added to the hardware tree.
- Select the newly added PIM-400.
- From the hardware select ribbon bar, click on the ADD AD-400 icon.
![Add AD-400 Icon](https://www.keri-kb.com/Content/Allegion/Images/Add_AD400_Icon.png)
- The AD-400 lock will also be added to the hardware tree.
![AD400 on hardware tree](https://www.keri-kb.com/Content/Allegion/Images/AD400_On_Hardware_Tree.png)
12.0 Linking the AD-400 to the PIM-400 using Doors.NET
The next step is to link the AD-400 lock to the PIM-400. The only prerequisite is that the lock must have been factory reset and the PIM-400 has already been configured with the correct address.
To link the lock perform the following:
Add the PIM-400 to the correct bus.
- Highlight the PIM-400 then add the AD-400 lock.
- Right-click the AD-400 lock and select Mode >> Link.
![Software Linking](https://www.keri-kb.com/Content/Allegion/Images/Software_Linking.png)
13.0 Setup and Configuring Credential Types
- Before setting up users or adding credentials to users, “Credential Types” must be configured to allow proper card and/or PIN operation.
- The Credential Types feature must be enabled on your license key within the Options section.
- While logged into the Doors.NET software, click Setup >> Credential Types.
![Credential Types](https://www.keri-kb.com/Content/Allegion/Images/Credential_Types.png)
- From the Access Control tab, click Add Active Format.
- In the properties pane locate Format and select Standard 26-bit.
- For PIN operation leave the FC field set to 0. and leave the Offset field set to 0. (This format will allow the keypad to work in 26-bit mode with a FC of 0).
- For CARD operation set the FC field to the Facility Code programmed in the card(s) to be enrolled.
- Leave the offset field set to 0, click save.
- If using cards the above process will need to be completed for each facility code in use.
14.0 Enrolling a Card or a PIN
- From Home >> Cardholders, add a new cardholder and save.
- When adding a card or PIN to a cardholder ensure the 'Calculate Internal Number' option is unchecked.
- Enter the Imprint number (number printed on the card) or the PIN into the Cardnumber field.
- Leave the issue code at the default value of zero.
- Click the Add Card button then save.
- Assign the card record an access group from the Access Rights tab.
- This card will automatically be sent to the controller(s) and should work within a few seconds.
15.0 System Capacities
- Secure 900 MHz wireless communication, AES-128 encrypted.
- Real time access control and monitoring.
- Patent pending wireless lockdown/unlock feature via PIM-400 in 10 seconds or less (preserves up to 2 year battery life).
- Powered by four (4) standard AA batteries, optional 8 AA battery pack available.
- Weather resistant, exterior operating temperature: -31° to 151°F (-35° to 66°C).
- Additional wireless products also available.
- Wireless Portable Reader (WPR400) for muster stations, buses, etc.
- Wireless Reader Interface (WRI400) eliminates running wires to remote doors, parking gates and elevator applications. - ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL294 and UL10C certified.
- NXT-2D can support up to 2 PIM-400.
- NXT 4D can support up to 4 PIM-400.
- Each PIM400-485 can support up to 16 AD-400 wireless devices, not to exceed 16 wireless devices per NXT (MSC) controller.
Wireless range up to 200’ in typical building construction, up to 1000' line of sight.
Proximity cards (125kHz)
AWID®
- GE/CASI®
HID®
- Schlage®
XceedID®
Smart cards (13.65 MHz)
aptiQ™ MIFARE Classic
- aptiQ™ MIFARE DESFire™ EV1
PIV and PIV-I compatible
Smart cards (13.65 MHz) - Reads card serial number only):
HID iCLASS®
DESFire®
- MIFARE®
MIFARE DESFire™ EV1
17.0 Resetting the AD-400/PIM-400
17.1 AD-400 Reset Procedure (to Factory Defaults)
(This will clear all the information programmed in the lock).
- Remove the top inside cover
- Press and hold the Schlage™ button until two (2) beeps sound (10 seconds) then release
- Press and release the Inside Push Button (IPB) three (3) times within 10 seconds... the button will beep and blink red with each press
- The Schlage™ button and IPB will both light green for one second and a one-second beep will be heard. This indicates that the lock has been reset... If IPB is not pressed 3 times within 10 seconds, two beeps with two red blinks indicating a timeout and procedure must be repeated.
- Replace the top inside cover.
17.2 PIM-400 KRI Reset Procedure (to factory defaults)
(This will clear all the information programmed in the device)
- Remove the main cover of the PIM-400.
![](https://help.kerisys.com/galleryDocuments/edbsncf3b381d1f8bb9c3c503cb9ac27721f5b252a0386bacf0118df6a57fc59e8456f6229c56b7d5ac6c663d8a914960c44a?inline=true)
Press and hold both link buttons for over 3 seconds until the LEDs start to flash red several times. When complete the LEDs will flash green momentarily and unit will be reset... Identified as LINK1 and LINK2 inside the PIM-400.
- Replace the main cover.
