1.0 Introduction

From Doors.NET v5.0.0 onwards, Keri Systems offers a new Video Plug-and-Play option that replaces the previous Reflections™ video program. The feature allows you to add a multitude of camera models from several manufacturers. Once cameras are added to Doors.NET you can associate a camera with readers, inputs or outputs and trigger a live video stream from events are generated from the linked hardware. For example, door forced events from a reader or input alarm events from a monitor point. Typically, the default camera settings can be used for streaming live video.

You can also use Doors.NET to associate system alerts with recorded video (based on the event timestamp) - Note that the camera video recording must be enabled and configured based on what recording options the camera offers.

The older Reflections™ video program will be removed from the current Doors.NET installation should it be detected during a Doors.NET software upgrade process.

Note: If you wish to continue using the Reflections™ video client then Doors.NET v4.9.0 is the last available supported version.

This document explains how to connect to a Hanwha Wisenet Wave server and to add an individual camera.

Important Note: The Hanwha Wisenet Wave integration connects to an existing Wisenet Wave system. Keri Systems cannot provide technical assistance or guidance in regards to getting a Wisenet Wave system up-and-running or specifying the required video equipment.


2.0 Notes About Video Recording

  • There is no guarantee that recorded video exists at the camera for the Doors.NET event timestamp - some cameras are edge devices that may or not have an SD card for video storage or may not have recording enabled in the camera settings.
  • The video recordings are NOT stored in the Doors.NET client - they are retrieved from the camera's recorded video storage location.
  • Typically, video recordings are saved to the NVR or a cloud source. Video recording is enabled and configured using the VMS or via a web browser.
  • If the video source does have recorded video, the playback stream starts at the event time (controller time) - the pre event time (default is 10 seconds) and continues up to event time + post event (default 10 seconds). So a 20 second playback (+/- 10 seconds from event time) is the default.
  • Doors.NET looks for the source of the video recordings - which may be either via an on-board SD card or the NVR or a cloud source.
  • The video playback timestamp is provided by DNET either from Live Events, Reports, or History. The timestamp passed into the plugin is the controller time along with the pre and post event times setup for that camera. Each camera can have different values for pre and post.



3.0 Download the Video Plug and Play Installer

Note: to download the software from the www.kerisys.com you will need to create a free account on the site so you can log in with your user name and password.

  1. Open a web browser, in the address field, enter www.kerisys.com.
  2. At the top of the homepage you will see: "MEMBER LOGIN". Click this link.
  3. Enter your username and password and log in.
  4. You will be on the downloads screen.
  5. Click the Software Downloads tile.
  6. From the list of supporting software (in the download area), select the 'Doors.NET Video Plugin Installer' option.



  7. Download the installation file to your PC.

4.0 Install Video Plug and Play

  1. Locate the installation file (.exe) in your Downloads directory
  2. Right click the installation file (and select Run as Administrator) to initialize the installer.
  3. Click NEXT.
  4. Read through and accept the license agreement.
  5. Click NEXT.
  6. Review the displayed information - this page displays which camera vendors are supported.
  7. Click NEXT.
  8. Review the folder where the plugin drivers will be installed. The default folder location is C:\Keri\DoorsNET
  9. Click NEXT and NEXT again to begin the installation of the video plugin drivers.
  10. All the video plugins will be installed within 60 seconds.
  11. Click FINISH to complete the installation.

5.0 Add a Hanwha Wisenet Camera to Doors.NET

  1. Log into the Doors.NET software.
  2. Go to Setup >> Hardware Setup >> All.
  3. Enable Advanced View if you do not see the Cameras entry on the hardware tree.
  4. Select Cameras.
  5. From the ribbon bar, click on ADD CAMERA.

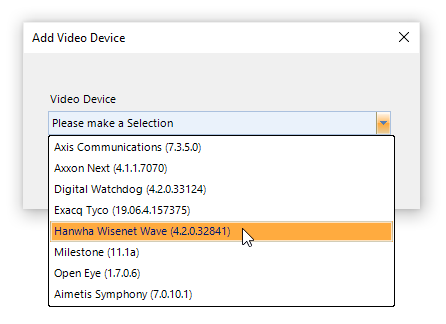

  6. From the drop-down menu, select Hanwha Wisenet Wave.

  7. Click ADD.

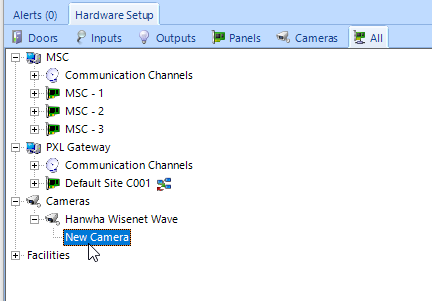

  8. Expand the Camera node on the hardware tree to display the new entry.
  9. Expand the Hanwha Wisenet Wave entry.
  10. Select New Camera.



  11. The camera properties will be displayed on the right.
  12. Enter a new descriptive name for the camera in the Description field.

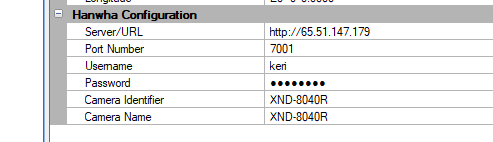

  13. Locate the Hanwha Configuration section and enter the Server URL and the port number.

    Note: (By default, Wisenet Wave Server access uses port 7001) - but you should verify this in your Wave Server configuration settings.



  14. Enter the user name and password to authenticate and connect to the server.
  15. Enter the camera's identifier (as it appears in the Wisenet Wave software).
  16. Enter the camera name (as it appears in the Wisenet Wave software).


6.0 View Live Video

To view a live video stream from the camera you must associate the added camera with a hardware object (for example, a controller, reader, input or output).

The following steps explain how to associate a camera with a reader.

  1. Navigate the hardware tree and select a reader.
  2. The reader properties will be on the right.
  3. Locate the Monitoring section at the bottom of the properties grid.
  4. In the Video Camera setting select the camera from the drop-down list.
  5. Save the reader settings.
  6. Select a different hardware object on the hardware tree then click back on the configured reader.
  7. You will now see a Live Video icon on the ribbon bar.
  8. Click this icon to immediately view live video from the camera.
  9. The live video window will appear.
  10. The live video stream will appear almost immediately. If not, Click the PLAY button to view the live video stream.



7.0 Display Live Video Window From an Alert






P/N: 02412-002 - Rev A
