Doors.NET - Full Installation

Doors.NET - Full Installation

1.0 Introduction

The Doors.NET software can be downloaded from the www.kerisys.com software downloads section. You can download just the installation file or you can download the entire installation file set (which will allow you to perform the installation on a PC that does not have an internet connection.



2.0 Host PC Requirements

Refer to the Doors.NET Host PC Requirements document for minimum PC spec information and details about supported Windows operating systems.


3.0 Installing from a USB Thumb Drive

If you are installing Doors.NET from a thumb drive obtained from Keri Systems, ensure you run the Autorun directory from the USB drive. Do not copy the contents across to the host PC as the autorun menu links will not be functional. When you have opened the auto-run menu simply click on 'Install Doors.NET software and the installation will begin (you can skip to section 5).

4.0 Download the Current Version of Doors.NET

Note: to download the software from the www.kerisys.com you will need to create a free account on the site so you can log in with your user name and password.
  1. Open a web browser and in the address field, type in www.kerisys.com.
  2. At the very top of the website page you will see: "MEMBER LOGIN". Click this link.

  3. Enter your username and password and log in.
  4. Click the link to go to the software downloads page.
  5. Click on Series 4 software.
  6. The most current version will be listed near the top of the page. The most current version at the time of writing is v4.3.7.
  7. There are two download options:

    - The software installer executable file only (335MB) - This executable installs Doors.NET on your host computer. It does NOT have all the possible options and extras that are found on the DVD. You must have an active Internet connection to complete this process.

    - The full software installer (3.81GB) - This executable installs Doors.NET on your host computer. This executable includes every required installation file plus files for every option and feature that could be installed, all in one, large download file.

    Software Installation Files

  8. Download the relevant file. We recommend downloading the full software installer (3.81GB) especially if you are unsure if the host PC has a fast, unrestricted internet connection.

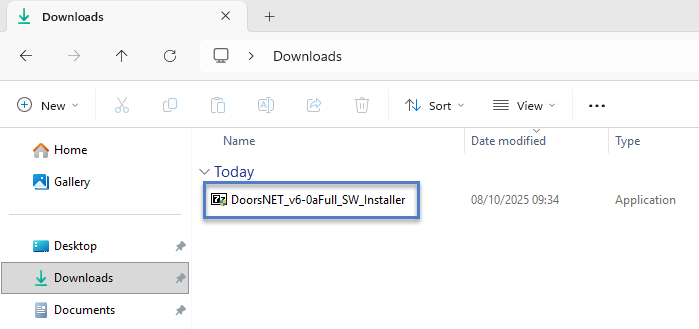

  9. Typically the downloaded file will be found in the Downloads folder on the PC.

    Installer_FULL

 5.0 Install the Doors.NET Software

  1. Double-click the self-extracting installation file.
  2. Wait a few moments while the file extraction initializes, then click the EXTRACT button.

    Extract Button
  3. You can also right-click the file and select 'Extract All'.
  4. Once all the files have been downloaded, click on the DoorsNETInstaller executable.
  5. The installer will initialise.

    Installer Initialize

  6. For an existing system you will be notified that the Doors.NET Windows services are still running. At this point you can go to Control Panel >> Administrative Tools >> Services, stop the Doors.NET services and then click retry, or you can just click the CLOSE button, the installer will continue but once you have completed the installation/upgrade you would then need to restart the PC.

  7. If you are upgrading an existing installation the installer program first reviews the firmware revisions for the hardware in the program database and notifies you of any required firmware updates. Click START to begin the software installation. A new installation skips this step.



  8. Once started, the installer uninstalls the previous version of Doors.NET then performs a quick installation file verification and prepares the file set for installation.
  1. The Welcome Window appears once the installation is ready to begin.

  1. Review the version listing to confirm the revision of the software to be installed.
  2. Click NEXT to continue to the License Agreement.

Note: You must accept the terms of the License Agreement to install this software. Keri recommends reading through the License Agreement in its entirety before accepting the terms.

  1. Click the check-box to accept the License Agreement.
  2. The software release notes information will be displayed next.

    Release Notes

  3. Click NEXT to enter Customer Registration information.



  1. Enter your User Name and (optionally) an Organization Name.
  2. Click NEXT to select your Type of Installation.



  1. Click the Radio Button corresponding to a Full Installation.
  • Full Installation installs all software components for a standard installation onto the PC.
  • Basic Installation installs only the user administrative client onto the computer.
  • Basic Installation with Hardware Driver installs the administrative client and all hardware gateways onto the computer. Use this option if your administrative client is on a different subnet than the PC with the full installation.
  • Custom Install allows you to select additional applications to be installed. This can include optional licensed applications beyond those included in the standard installation package.
  1. Click NEXT to verify the installation parameters.

  1. Review this list carefully as it explicitly states what will and will not be installed on your PC.
  • A list of items to be installed is displayed in GREEN.
  • A list of items that will not be installed is displayed in RED.
  • If this list is not correct, click BACK and review the Type of Installation options.
  1. Click the checkbox to confirm the installation parameters are correct.
  2. Click NEXT to select the Destination Folder. This is the folder into which the Doors.NET software is installed.

  1. The default destination folder is listed in the destination folder field. Keri recommends using this folder for the software installation. If a different destination folder is desired than the default, you may use the Explorer window to locate the desired folder. Once located, double-click on the folder name to enter the folder name into the destination field.

  2. Click NEXT to select the types of program shortcuts to be installed on the computer.

  1. Use the radio buttons to select if software access is to be granted to:
  • Current User Only (the user logged into the PC)
  • All Users of the Computer (any user logged into the PC)
  1. Use the check boxes to select any combination of:
  • Desktop icon
  • Start Menu folder
  • Quick Launch Toolbar (where applicable)
  1. Click NEXT to install the Doors.NET database. You will see one of two screens depending upon the operating system installed on your computer.

If you have an operating system PRIOR to Windows 8 you will have this installation screen.



SQL DB install



If you have an operating system that is Windows 8 or greater you will have this installation screen.



Note: SQL Management Tools are automatically installed with Windows operating systems prior to Windows 8. With Windows 8 or higher revisions the SQL Management Tools must be installed separately. If you are installing on a system with Windows 8 or higher, an additional tick-box appears (refer to the graphic below). Keri strongly recommends checking this box to allow the SQL Management Tools installer to be copied to your computer. These tools allow you to detach, relocate, and reattach Doors.NET databases. Click Here for instructions on how to use the SQL Management Tools installer.





  1. There are three options based on what the installer finds:
  • Install the Database on this computer - this is the default option. If the Installer detects an existing SQL application, its revision is listed. If there isn't an SQL Server available on the PC, then Microsoft's SQL Server Express┬« (a free SQL server package) will be installed and then the database will be installed.
  • Scan the Network for Existing SQL Servers - allows the installer to search all accessible network folders for an SQL application and installs the database on that network folder. Using this option requires that the network folder always be available for the PC/Doors.NET program.
  • Install the Application Server only - requires a Manual database installation. This option is recommended only for installers who are very familiar with SQL.
  1. Click Next to confirm you are ready to install the software.
  2. Click Install to begin the installation.

    Click to Install

  3. A progress bar keeps you informed on the installation process. There are several steps during the installation process where there may be a delay of several minutes. Please be patient as the software installs.

  1. If you are upgrading the software from a previous revision the existing system database may need to be upgraded as well. If so, the database upgrade program will automatically run once software installation is complete. A new software installation will not perform this step.



  1. The installation process is complete once the software is installed, and a new database is created or an existing database is upgraded.
  1. For a new installation you will be prompted to run the License Manager, for an existing installation you will be prompted to restart the PC. Click FINISH to close the Installation Window.

    Run License Manager

  2. For an existing installation you will be prompted to restart the PC.

    Restart_Now

  3. If you opted for a desktop icon, the shortcut icon is placed on your desktop.



The software is now installed and ready for licensing and gateway configuration.

  1. You should restart your computer before you start the Doors.NET program.
