The Tamper Relay Board (TRB) is used to provide external annunciation of controller enclosure and peripheral enclosure tamper events; either an opened enclosure cover or for an enclosure that has been removed from its mounting location (requiring additional installation steps by the Installer). The TRB enables NXT-family and PXL-family controllers to meet UL-294/CSA Class 4812 requirements for annunciation of controller tamper incidents. It is designed to accept standard types of tamper switches. The Installer must supply the external annunciation device (alarm, signal light, etc.).

NXT controllers have the ability to report tamper events and have the event saved in Doors.NET. This is done via a cable that is supplied with the TRB. Connect the provided cable between J2 on the TRB and J1 on the NXT controller. Note: PXL controllers do NOT have this feature.

The NXT/PXL standard enclosure has a set of four PEMs in the upper-right corner of the enclosure to which the TRB is mounted. The NXT-4x4 and KPS power supply enclosure has four holes in the upper-right corner of the enclosure. The TRB is mounted in this location using four stand-offs.

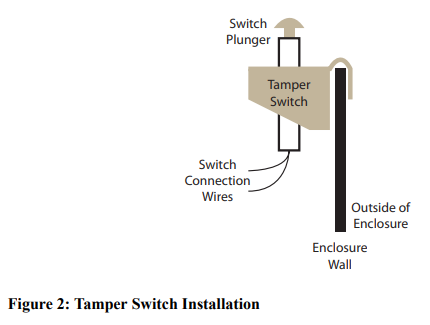

Keri provides one enclosure tamper switch with each TRB. The switch is typically installed along the edge of the enclosure opposite the enclosure hinge and clear of the enclosure lock (see Figure 2 on page 2).

Refer to Figure 1  for all instructions in this Section.

• provides the input signal for enclosure tamper events – enclosure cover forced open and/or enclosure removed from its mounting location

• uses normally-open switches • connection is made to either or both J3 and J5 (the switch connections are designed in parallel)

• requires two-conductor, AWG 22 wire

• used if a tamper switch is NOT used in one of the two switch positions (single-switch application)

• factory default is jumpers ON (bypasses both Tamper Switches)

• remove the corresponding jumper when a tamper switch is installed
- remove Bypass Jumper 1 (J4) for switch position 1 (J3)
- remove Bypass Jumper 2 (J6) for switch position 2 (J5)

• completes the circuit for alarm annunciation

• relay changes state as a tamper switch changes state

• Keri does NOT provide the alarm annunciation device

• requires two- or three-conductor, AWG 22 wire depending upon your alarm annunciation device

Unit Power

• requires 12 VDC, can be tapped off of the controller’s power

• requires two-conductor, AWG 22 wire

• allows the NXT controller to record an Enclosure Tamper event

• a cable is provided with the TRB to make this connection

• connect the cable between J2 on the TRB and J1 on the NXT controller

• this is a keyed connection so be sure to orient the plug correctly

Note: The Tamper Event Report connection does not apply to the PXL. The PXL does NOT have the ability to report Enclosure Tamper events.

The TRB is operational as long as power is supplied to the unit. Two LEDs on the TRB provide unit status.

• Red LED – indicates alarm condition

• Green LED – indicates non-alarm condition

Verify tamper switch operation by toggling the tamper switch(es) and observing the red and green LEDs follow tamper switch state.
