NXT-RM3 Module - Installation Guide

NXT-RM3 Module - Installation Guide

1.0 Wiring and Layout Diagrams

1.1 Reader Interface Module (RIM) Diagram


Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

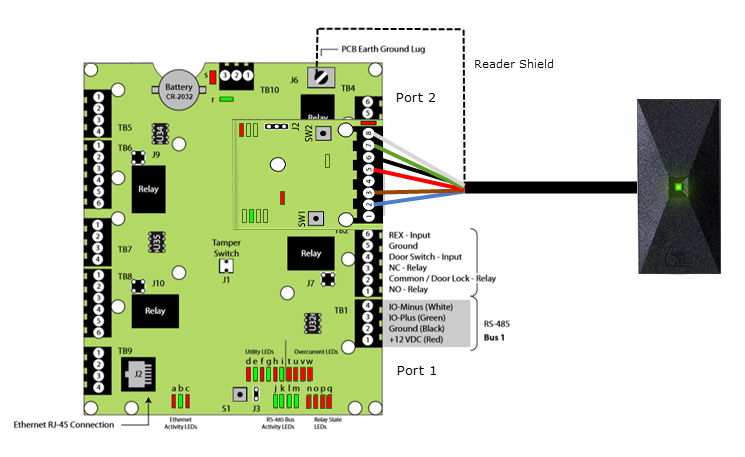

1.2 MS Reader Wiring Diagram


1.3 Wiegand Reader Wiring Diagram (Single Line LED)



1.4 Wiegand Reader Wiring Diagram (Dual Line LED)




2.0 Reader Grounding

As shown in the reader diagrams, the shield/drain wire of any reader/peripheral cables
MUST be terminated to one of the following points

  1. the green ground lug (J6) on the controller (illustrated),
  2. any corner screw attaching the controller to the enclosure,
  3. Pin 3 of TB10,
  4. or the ground lug of the enclosure.
Failure to properly earth ground the reader/peripheral drain wire may result in unreliable communication or operation of the attached peripheral.


3.0 Specifications

3.1 Size

• When mounted on the NXT Controller
- 2.50 inches high by 2.0 inches wide by 1.0 inch deep, not including wiring connectors
- 6.4 cm by 5.0cm by 2.5cm

3.2 Power/Current Requirements

10 to 14 VDC @ 100 mA (maximum current draw at 12 VDC)

3.3 Operating Conditions

32°F to 150°F (0°C to 60°C) – 0% to 90% Relative Humidity, non-condensing

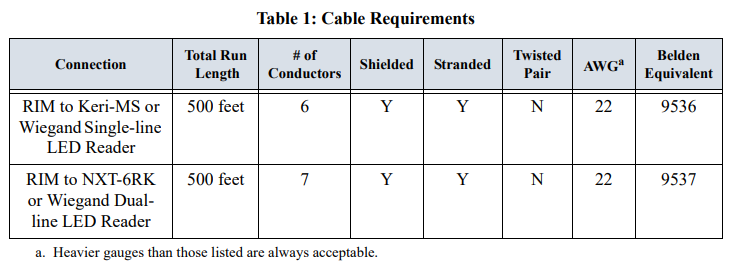

3.4 Cable Requirements

The total RIM to reader cable length must be less than 500 feet.

Note: On long cable runs, cable resistance causes a drop in voltage at the end of the cable run. Ensure the appropriate power and current for your device is available at the device at the end of the cable run.




4.0 RIM Configuration

The RIM allows either Keri MS or Wiegand readers/credentials to be recognized and read by NXT controllers. The default RIM configuration is for an MS-Series Reader using two line LED control (multi-color). Perform the following steps to configure the RIM for your application. Refer to the Drawing on page 1 for switch and LED locations, and the Table on page 3 for switch and LED definitions.

4.1 Enter Programming Mode

1. Hold down both SW1 and SW2 for about two seconds.
2. All seven LEDs on the RIM will flash three times.
3. Release both SW1 and SW2, and the unit is now in configuration mode.
4. Once in configuration mode, SW1 steps between options - SW2 selects the currently displayed option.

4.2 Select Your Reader Type

The Keri MS (D4), Wiegand (D5), Keri Keypad (D6), and Wiegand Keypad/Reader Combo (D7) types are currently supported.

1. Press SW1 to step through the supported reader types. Each press of SW1 will step to the next reader type.
2. When the desired reader type LED is illuminated, press SW2. The reader type is now set.
3. If you have selected Wiegand (D5), Keri Keypad (D6), or Wiegand Combo (D7) reader mode, the unit is now ready to configure the RIM’s LED line control mode. Skip to section 3.3 for configuration instructions.
4. If you have selected Keri MS (D4) reader mode, press SW2 twice. The RIM is now configured and the unit reboots to accept the new parameters. All seven LEDs will flash three times as the unit reboots with the new configuration parameters. When the LEDs stop flashing, the unit is operational.

Note: Do not remove power from the RIM during the reboot process. Loss of power during rebooting will invalidate any configuration changes you have made.


4.3 Select Your Wiegand Reader LED Line Configuration

Dual-line control is the default RIM setting for LED line configuration. This is the desired setting for the Keri Keypad reader. Perform the following steps to switch between single-line and dual-line LED control.

1. Press SW1 to step through the supported LED line configuration types. Each press of SW1 will step to the next LED line type.
2. When the desired LED line control mode LED is illuminated, press SW2. The LED line control mode is now set.
3. Press SW2 twice and the RIM is now configured and the unit reboots to accept the new parameters.
4. The RIM’s LEDs will be off for about 10 seconds as the unit resets itself. All seven LEDs will flash as the unit is rebooting with the new configuration parameters. When the LEDs stop flashing, the unit is operational.

Note: Do not remove power from the RIM during the reboot process. Loss of power during rebooting will invalidate any configuration changes you have made.


4.4 Verifying RIM Configuration

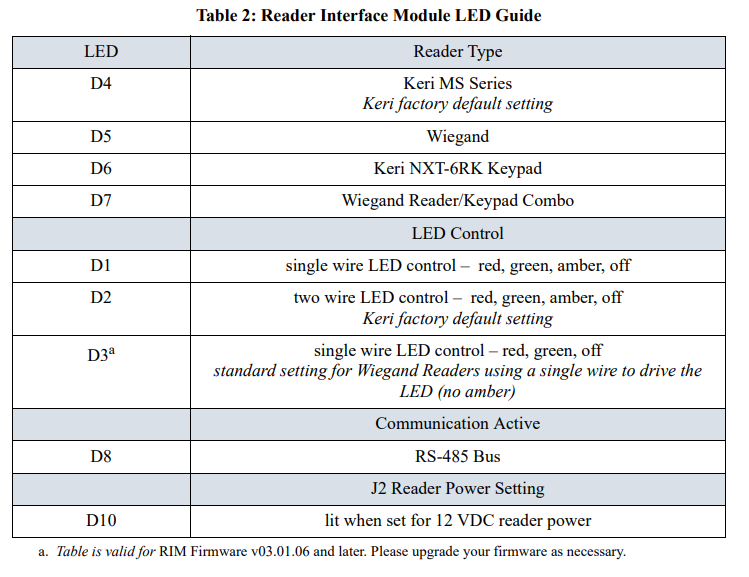

The corresponding reader type and line control mode LEDs are illuminated during operation. To confirm your configuration settings, refer to the drawing at the beginning of the document for switch and LED locations, and the following table for switch and LED definitions.
